Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
To handle the high inrush current during startup, it's recommended to use a soft-start circuit or a current limiter to prevent voltage drops and ensure a stable power supply. Additionally, consider using a bulk capacitor to absorb the inrush current.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation within the desired temperature range.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components. Additionally, consider conducting EMC testing and simulation to validate the design.
Panasonic provides reliability data and lifespan expectations in their quality and reliability documents. The ARS304H is designed to meet high reliability standards, but it's essential to consider factors like operating conditions, usage patterns, and environmental factors to ensure optimal performance and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS304H Overview

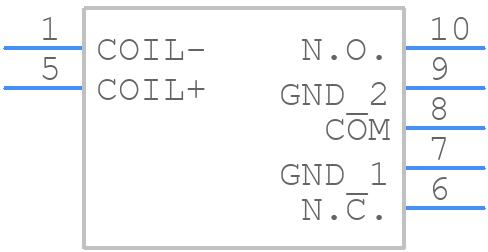

Use the download button to access the ARS304H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS30,
or try a keyword search, such as RF Relays
