Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The choice of TIM depends on the specific application, operating temperature, and thermal requirements. Panasonic recommends using a TIM with a thermal conductivity of at least 1 W/m-K and a thickness of 0.1-0.5 mm. Consult with thermal management experts or Panasonic's technical support for specific guidance.
While the datasheet specifies the maximum rated voltage, derating is necessary to ensure long-term reliability. As a general rule, derate the voltage by 10-20% to account for voltage spikes, noise, and other environmental factors. Consult with Panasonic's technical support for specific guidance on voltage derating.
Follow Panasonic's recommended soldering and rework guidelines, which include using a soldering iron with a temperature of 350°C max, a soldering time of 3 seconds max, and a peak temperature of 260°C during reflow. Additionally, use a solder with a melting point above 217°C and follow proper cleaning and drying procedures.
Store the ARS30Y03 in a dry, cool place (20-30°C, 40-60% RH) away from direct sunlight and moisture. Handle the devices by the edges or body, avoiding touching the pins or electrical contacts. Use anti-static packaging and follow ESD precautions during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS30Y03 Overview

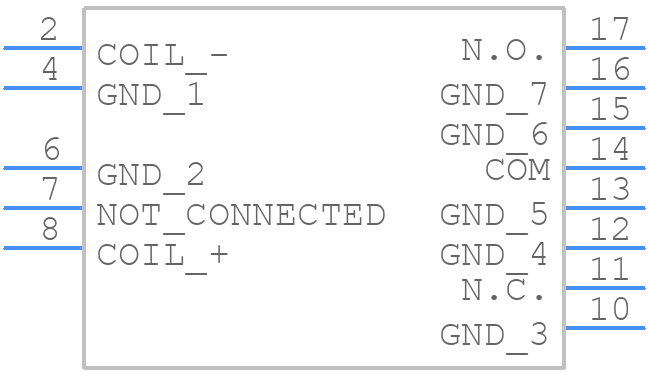

Use the download button to access the ARS30Y03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS30,
or try a keyword search, such as RF Relays
