Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
The ARS34Y12 relay has a coil voltage rating of 12V and a coil current rating of 15.4mA. Ensure your design provides a stable voltage supply and current limiting to prevent overheating or damage to the relay. You may need to add a voltage regulator, current limiter, or resistor to achieve this.
The ARS34Y12 relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Ensure your design takes into account the relay's temperature rating and provides adequate cooling or heat dissipation measures.
To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the contacts, and use a soft brush or compressed air to remove any debris. You can also apply a contact cleaner or lubricant to the contacts, but be sure to follow the manufacturer's recommendations.
The ARS34Y12 relay's expected lifespan is approximately 100,000 cycles at 10A, 250VAC. To extend the relay's lifespan, ensure proper operating conditions, avoid overheating, and minimize the number of switching cycles. You can also consider using a relay with a higher lifespan rating or implementing a redundant relay design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS34Y12 Overview

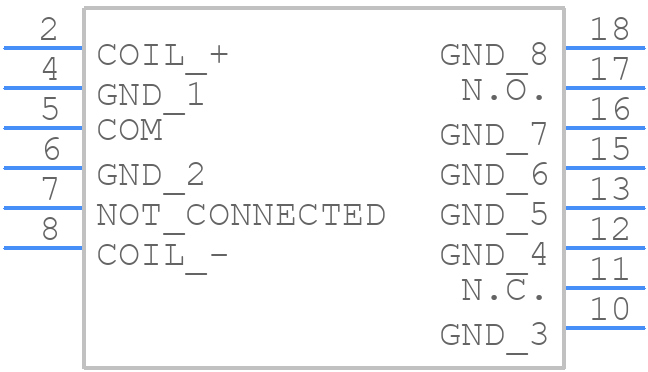

Use the download button to access the ARS34Y12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS34,
or try a keyword search, such as RF Relays
