The recommended land pattern for the AS-16.000-18-SMD-TR is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of vibration and shock on the crystal, it's recommended to use a shock-absorbing material, such as a silicone-based adhesive, to mount the crystal to the PCB. Additionally, ensure the PCB is properly secured to the device or enclosure.
The recommended storage condition for the AS-16.000-18-SMD-TR is in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and relative humidity below 80%.
While the AS-16.000-18-SMD-TR is rated for operation up to 85°C, it's not recommended for use in high-temperature environments above 85°C. If your application requires high-temperature operation, consider using a different crystal or consulting with Raltron Electronics Corporation for a custom solution.
To ensure frequency stability, it's essential to follow proper PCB design and layout guidelines, including using a solid ground plane, minimizing noise and EMI, and using a high-quality crystal oscillator circuit. Additionally, consider using a crystal with a high-quality factor (Q) and a stable oscillator circuit design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS-16.000-18-SMD-TR Overview

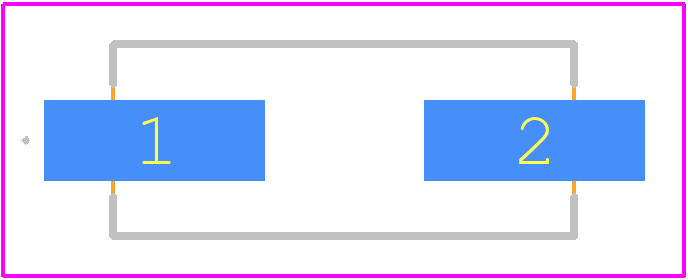

Use the download button to access the AS-16.000-18-SMD-TR schematic symbol, PCB footprint, and 3D model.
