AS-4.000-18-SMD-TR footprint, schematic symbol and 3D model by RALTRON

Symbol

PCB Footprints

3D Models

AS-4.000-18-SMD-TR Details

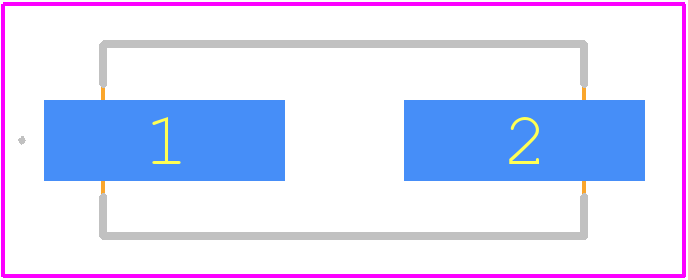

The recommended land pattern for AS-4.000-18-SMD-TR is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
To handle thermal considerations, ensure a good thermal connection to a solid ground plane or a thermal via to dissipate heat. Keep the component away from heat sources and ensure good airflow around the component.
The recommended soldering profile for AS-4.000-18-SMD-TR is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. Use a solder with a melting point of 217°C or higher.
Yes, AS-4.000-18-SMD-TR is designed to withstand high-vibration environments. However, ensure proper mounting and soldering to prevent mechanical stress on the component.
To troubleshoot issues, check for proper soldering, ensure correct component orientation, and verify the input signal frequency and amplitude. Use a signal generator and oscilloscope to debug the circuit.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AS-4.000-18-SMD-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS-4., or try a keyword search, such as Quartz Crystals
