The recommended land pattern for the AS-7.3728-18-SMD-TR can be found in the Raltron Electronics Corporation's application note or by contacting their technical support team. Generally, a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 0.5mm is recommended.
To handle the ESD sensitivity of the AS-7.3728-18-SMD-TR, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-safe environment. Additionally, ensure that the PCB design and manufacturing process also follow ESD-safe practices.
The thermal resistance of the AS-7.3728-18-SMD-TR is not explicitly stated in the datasheet. However, it can be estimated to be around 20-30°C/W, which is typical for SMD oscillators. For more accurate information, contact Raltron Electronics Corporation's technical support team.
The AS-7.3728-18-SMD-TR is designed to operate in a variety of environments, but it's recommended to consult with Raltron Electronics Corporation's technical support team to determine its suitability for high-vibration applications. They can provide guidance on the oscillator's mechanical robustness and potential modifications to ensure reliable operation.
The recommended soldering profile for the AS-7.3728-18-SMD-TR is a standard SMD reflow profile with a peak temperature of 240-250°C and a dwell time of 20-30 seconds. However, it's recommended to consult with Raltron Electronics Corporation's technical support team or the PCB manufacturer for specific guidance on the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS-7.3728-18-SMD-TR Overview

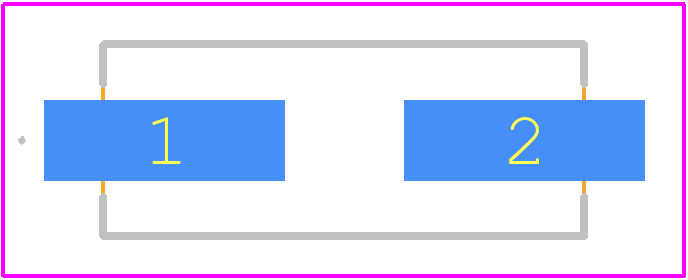

Use the download button to access the AS-7.3728-18-SMD-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS-7.,
or try a keyword search, such as Quartz Crystals
