The recommended land pattern for AS-8.000-18-SMD-TR is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of vibration and shock, it's recommended to use a shock-absorbing material, such as a silicone adhesive, to mount the crystal to the PCB. Additionally, ensure the PCB is properly secured to the device or enclosure.
Store the AS-8.000-18-SMD-TR in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less, and a temperature range of -20°C to 40°C.
While the AS-8.000-18-SMD-TR is rated for operation up to 85°C, it's recommended to derate the frequency tolerance and stability specifications for temperatures above 70°C. Consult the datasheet and application notes for more information.
To ensure frequency stability, maintain a consistent operating temperature, minimize mechanical stress, and avoid exposure to extreme environmental conditions. Additionally, consider using a crystal oscillator with a built-in PLL or VCXO for improved frequency stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS-8.000-18-SMD-TR Overview

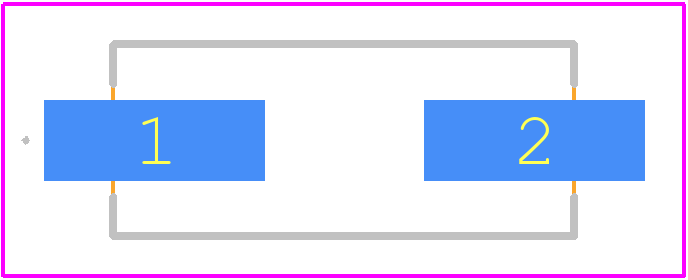

Use the download button to access the AS-8.000-18-SMD-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS-8.,
or try a keyword search, such as Quartz Crystals
