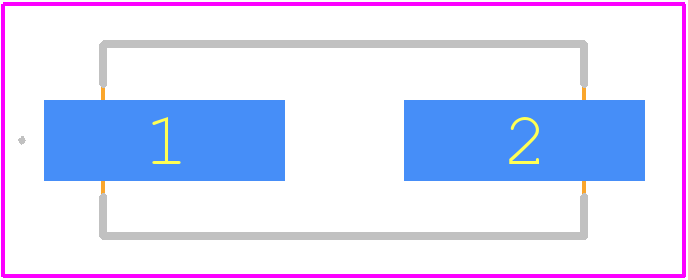

AS-9.8304-18-SMD-TR footprint, schematic symbol and 3D model by RALTRON

Symbol

PCB Footprints

3D Models

AS-9.8304-18-SMD-TR Details

The recommended land pattern for the AS-9.8304-18-SMD-TR can be found in the Raltron Electronics Corporation's application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
During reflow soldering, it's essential to follow the recommended reflow profile provided in the datasheet. The component should be placed on a solder paste layer with a thickness of 0.1-0.2 mm. The peak reflow temperature should not exceed 260°C, and the dwell time above 220°C should be less than 60 seconds.
The maximum operating temperature range for the AS-9.8304-18-SMD-TR is -40°C to +85°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
The AS-9.8304-18-SMD-TR is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Raltron Electronics Corporation's technical support team to determine the component's suitability and potential derating requirements.
The AS-9.8304-18-SMD-TR should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the components in their original packaging or in a sealed bag with desiccant to prevent moisture absorption. Handling should be done with anti-static wrist straps or mats to prevent electrostatic discharge damage.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AS-9.8304-18-SMD-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS-9., or try a keyword search, such as Quartz Crystals
