AS0B221-S52Q-7H - Foxconn

Description: 52-position SMT Mini PCIe socket, 0.8 mm pitch, 5.2 mm stack height, 3.3 V rating, gold flash plating, 25 cycles, -40 °C to +80 °C, for notebook applications.

Download AS0B221-S52Q-7H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AS0B221-S52Q-7H - Foxconn - PCB symbol
click to zoom
PCB Footprints

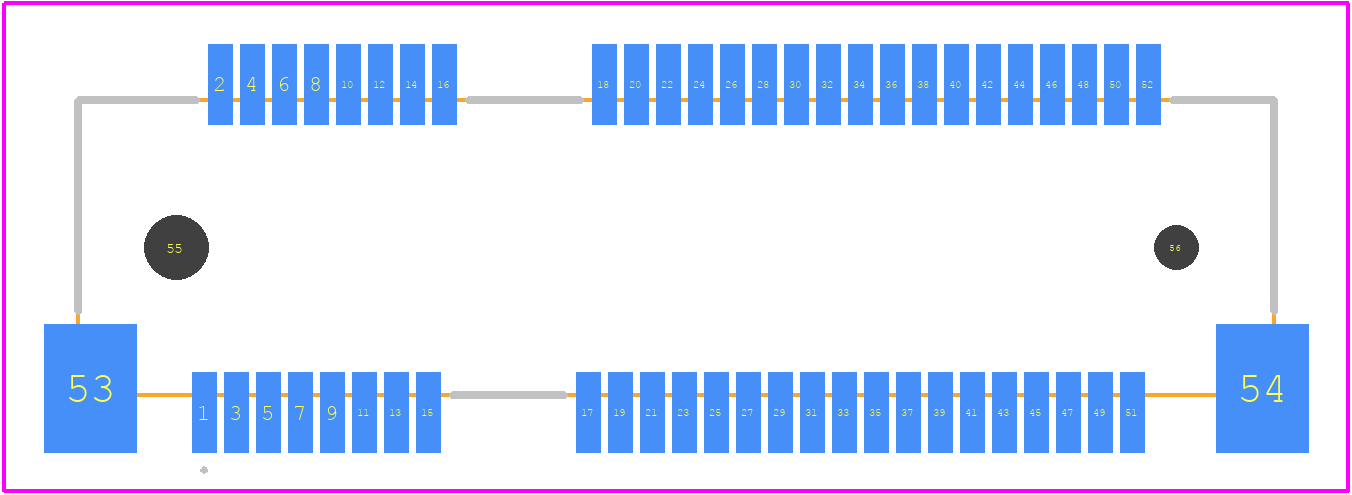

AS0B221-S52Q-7H - Foxconn PCB footprint - Other - Other - AS0B221-S52Q-7H-2
click to zoom
3D Models
AS0B221-S52Q-7H - Foxconn - 3D model - Other - AS0B221-S52Q-7H-2
click to zoom

AS0B221-S52Q-7H Details

  • Manufacturer Part Number:

    AS0B221-S52Q-7H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Foxconn Interconnect Technology Limited

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS0B221-S52Q-7H Overview

Use the download button to access the AS0B221-S52Q-7H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS0B2, or try a keyword search, such as Headers and Edge Type Connectors
