AS195-306LF - Skyworks

Description: IC RF SWITCH SP5T 2GHZ 16QFN

Download AS195-306LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

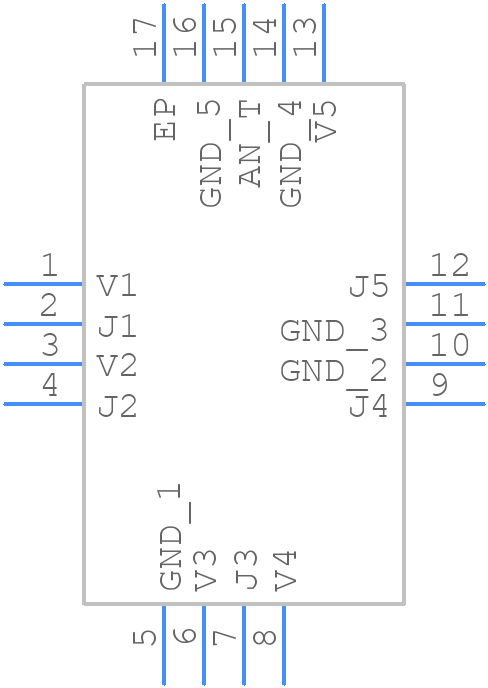

AS195-306LF - Skyworks - PCB symbol
click to zoom
PCB Footprints
AS195-306LF - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 16
click to zoom
3D Models
AS195-306LF - Skyworks - 3D model - Quad Flat No-Lead - QFN 16
click to zoom

AS195-306LF Details

  • Manufacturer Part Number:

    AS195-306LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT, 4 X 4 MM, MLF-16, 16 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.1 dB

  • Isolation-Min:

    21 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    SP5T

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    1.6

AS195-306LF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce electromagnetic interference (EMI).
  • The device requires a bias voltage of 3.3V to 5V. A voltage regulator or a voltage divider network can be used to generate the bias voltage. The bias voltage should be decoupled with a 10uF capacitor to reduce noise and ensure stable operation.
  • The AS195-306LF can handle up to 30 dBm of input power. Exceeding this limit may cause damage to the device or affect its performance. It is recommended to use an attenuator or a limiter to prevent over-powering the device.
  • Common issues with the AS195-306LF include poor gain, high noise figure, or oscillations. Troubleshooting steps include checking the bias voltage, ensuring proper PCB layout, and verifying the input and output impedance matching. A spectrum analyzer or a network analyzer can be used to diagnose issues with the device.
  • The AS195-306LF is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. For high-temperature applications, it is recommended to derate the device's power handling capability and ensure proper thermal management.
