AS1C512K16PL-70BIN - Alliance Memory

Description: SRAM 8M 512Kx16 1.8V LP Pseudo SRAM IT

Download AS1C512K16PL-70BIN Model

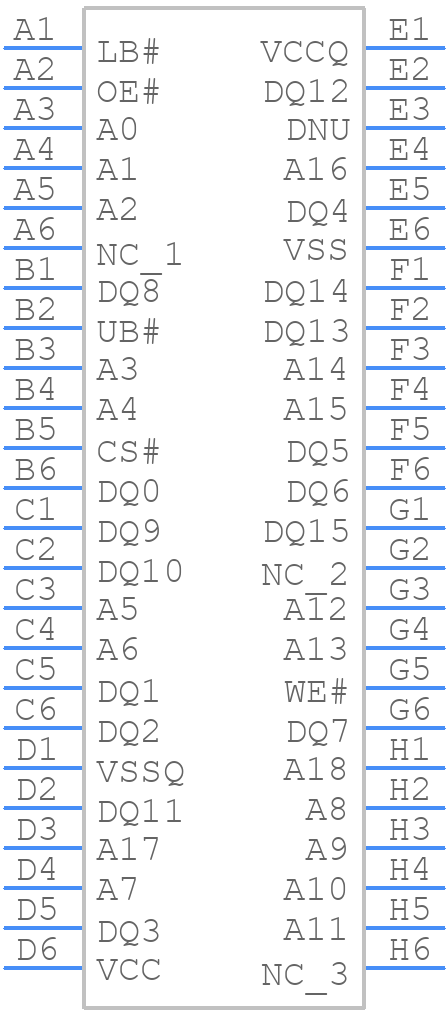

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AS1C512K16PL-70BIN - Alliance Memory PCB footprint - BGA - BGA - 48 Ball Fine Pitch BGA
click to zoom
3D Models
AS1C512K16PL-70BIN - Alliance Memory  - 3D model - BGA - 48 Ball Fine Pitch BGA
click to zoom

AS1C512K16PL-70BIN Details

  • Manufacturer Part Number:

    AS1C512K16PL-70BIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FPBGA-48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    0

  • Access Time-Max:

    70 ns

  • JESD-30 Code:

    R-PBGA-B48

  • Length:

    7 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    PSEUDO STATIC RAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Organization:

    512KX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

AS1C512K16PL-70BIN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AS1C512K16PL-70BIN is 0°C to 70°C.
  • The AS1C512K16PL-70BIN requires a refresh cycle every 64ms, with a minimum of 4096 refreshes within an 64ms interval.
  • The minimum clock cycle time for the AS1C512K16PL-70BIN is 70ns (at 70MHz).
  • Yes, the AS1C512K16PL-70BIN is compatible with 3.3V power supplies, but ensure that the VDD and VDDQ pins are connected to a 3.3V power source.
  • After power-up, the AS1C512K16PL-70BIN requires a minimum of 200us delay before applying clock signals, followed by a minimum of 8 clock cycles with CKE high and CS low to initialize the device.
