AS29CF040-55CCIN - Alliance Memory

Description: NOR Flash

Download AS29CF040-55CCIN Model

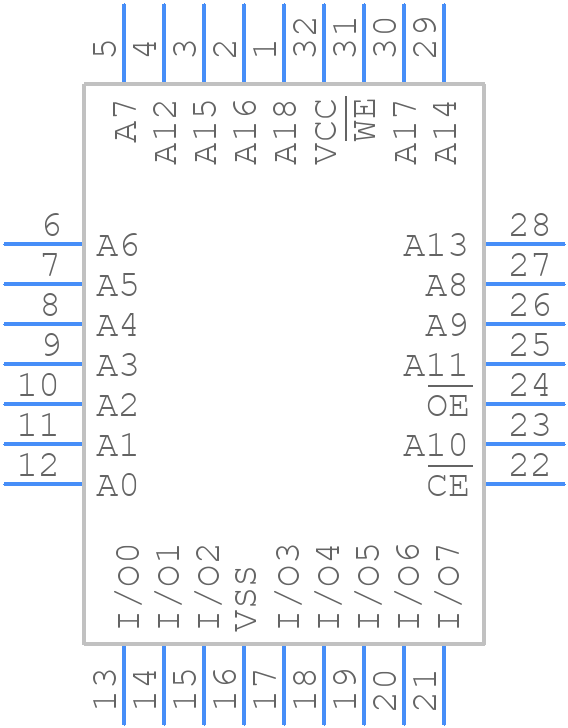

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

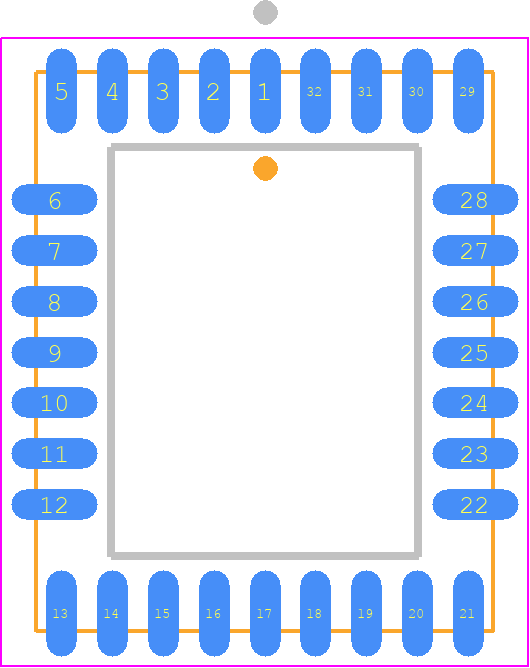

AS29CF040-55CCIN - Alliance Memory PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLCC 32L
click to zoom

AS29CF040-55CCIN Details

  • Manufacturer Part Number:

    AS29CF040-55CCIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLCC-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4.2

  • Access Time-Max:

    55 ns

  • Command User Interface:

    NO

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PQCC-J32

  • Length:

    13.97 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Sectors/Size:

    8

  • Number of Terminals:

    32

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    5 V

  • Ready/Busy:

    YES

  • Reverse Pinout:

    NO

  • Seated Height-Max:

    3.4 mm

  • Sector Size:

    64K

  • Standby Current-Max:

    0.001 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Toggle Bit:

    YES

  • Width:

    11.43 mm

AS29CF040-55CCIN Frequently Asked Questions (FAQs)

  • The AS29CF040-55CCIN has an operating temperature range of -40°C to +85°C.
  • The device requires a controlled power-up and power-down sequence to prevent latch-up and ensure proper operation. A slow ramp-up and ramp-down of the power supply voltage is recommended.
  • The recommended voltage range for the VCC pin is 4.5V to 5.5V.
  • The CE# pin should be tied low to enable the device and high to disable it. When CE# is high, the device is in standby mode and consumes minimal power.
  • The WE# pin is used to control writes to the device. When WE# is low, the device is in write mode, and when it's high, the device is in read mode.
