AS3820E-ZQFT - Renesas Electronics

Description: The AS3820 is a 16-channel precision LED for use in LCD-backlight panels. Dynamic power feedback controls the external power supply to guarantee the best efficiency.Built-in safety features include thermal shutdown as well as open and short LED detection. The device is programmable via a serial interface.

Download AS3820E-ZQFT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS3820E-ZQFT model

Email notifications will be applied after download.

Send part feedback

Symbol

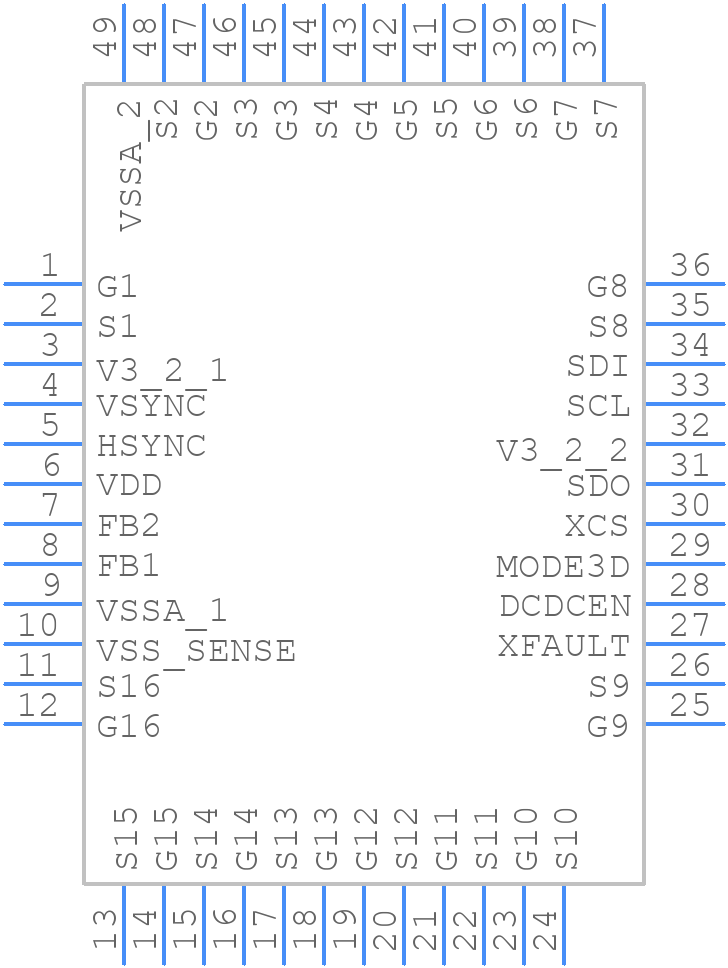

AS3820E-ZQFT - Renesas Electronics - PCB symbol

PCB Footprints

AS3820E-ZQFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin QFN_2022

3D Models

AS3820E-ZQFT - Renesas Electronics - 3D model - Quad Flat No-Lead - 48-Pin QFN_2022

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS3820E-ZQFT
Part Number AS3820E-ZQFT
Manufacturer Renesas Electronics
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48-Pin QFN_2022
Released Date Jun 23, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

AS3820E-ZQFT Details

Manufacturer Part Number:
AS3820E-ZQFT
Brand Name:
Renesas
Part Life Cycle Code:
Not Recommended
Part Package Code:
QFN48 7x7
Pin Count:
48
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
YTEOL:
3
Interface IC Type:
LED DISPLAY DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AS3820E-ZQFT Overview

Use the download button to access the AS3820E-ZQFT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS382, or try a keyword search, such as Display Drivers
