AS3935-BQFT - ScioSense

Description: Interface - Specialized AS3935-BQFT MLPQ16 LF T&RDP

Download AS3935-BQFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

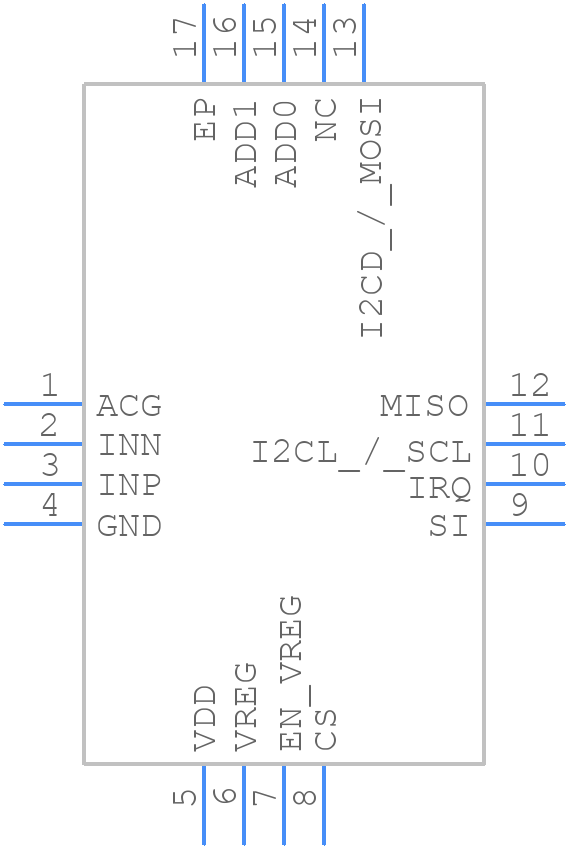

AS3935-BQFT - ScioSense - PCB symbol
click to zoom
PCB Footprints
AS3935-BQFT - ScioSense PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16LD MLPQ (4x4mm)
click to zoom
3D Models
AS3935-BQFT - ScioSense - 3D model - Quad Flat No-Lead - 16LD MLPQ (4x4mm)
click to zoom

AS3935-BQFT Details

  • Manufacturer Part Number:

    AS3935-BQFT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    MLPQ-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ScioSense

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AS3935-BQFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a common mode filter to reduce EMI.
  • Calibration involves adjusting the internal tuning capacitors to match the PCB's parasitic capacitance. Use the provided calibration software and follow the application note guidelines for optimal results.
  • The maximum distance depends on the environment and antenna design. In ideal conditions, the AS3935-BQFT can achieve up to 10 meters of range. However, this can be affected by obstacles, interference, and antenna orientation.
  • Use two or more antennas, spaced at least λ/2 apart, and connect them to the AS3935-BQFT's antenna pins. Implement a switching mechanism to select the best antenna based on signal strength or quality.
  • In low-power mode, the AS3935-BQFT consumes approximately 10 μA. This mode is suitable for battery-powered devices that require extended battery life.
