Part Image

AS5045B-ASST - ams OSRAM

Description: Board Mount Hall Effect / Magnetic Sensors 12-Bit Rotary Pos Sensor PWM ABI

Download AS5045B-ASST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

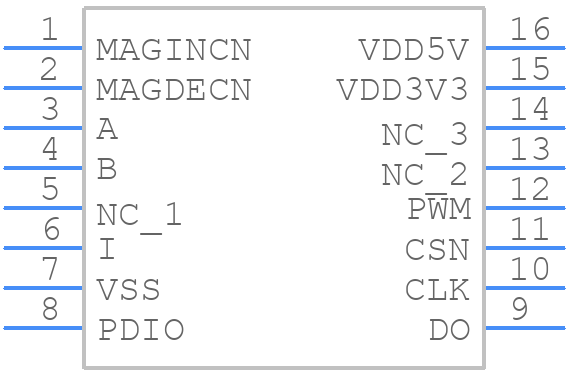

AS5045B-ASST - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5045B-ASST - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-16
click to zoom
3D Models
AS5045B-ASST - ams OSRAM - 3D model - Small Outline Packages - SSOP-16
click to zoom

AS5045B-ASST Details

  • Manufacturer Part Number:

    AS5045B-ASST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    7

  • Body Breadth:

    5.3 mm

  • Body Height:

    1.73 mm

  • Body Length or Diameter:

    6.2 mm

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    21 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SSI

  • Output Range:

    0.4-4.5V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AS5045B-ASST Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AS5045B-ASST can be found in the application note AN5000, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • To handle the AS5045B-ASST's output data in a noisy environment, it is recommended to use a low-pass filter or a digital filter to remove high-frequency noise. Additionally, using a shielded cable and a grounded PCB can help reduce electromagnetic interference (EMI).
  • The AS5045B-ASST has an operating temperature range of -40°C to 125°C, but it is recommended to operate it within the range of -20°C to 85°C for optimal performance and reliability.
  • While it is possible to use the AS5045B-ASST with a different magnet, it is not recommended as the device is optimized for use with the recommended magnet. Using a different magnet may affect the device's accuracy and performance.
  • Calibration of the AS5045B-ASST involves adjusting the device's internal parameters to match the specific requirements of the application. This can be done using the device's built-in calibration mode or through the use of external calibration tools and software.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5045B-ASST Overview

Use the download button to access the AS5045B-ASST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS504, or try a keyword search, such as Rotary Position Sensors
