Part Image

AS5047U-HTSM - ams OSRAM

Description: AMS AS5047U-HTSM TSSOP14 LF T&RDP

Download AS5047U-HTSM Model

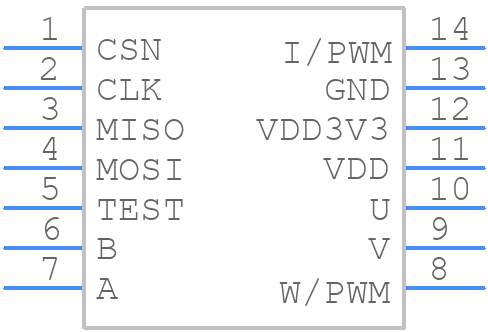

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AS5047U-HTSM - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - AS5047U
click to zoom
3D Models
AS5047U-HTSM - ams OSRAM  - 3D model - Small Outline Packages - AS5047U
click to zoom

AS5047U-HTSM Details

  • Manufacturer Part Number:

    AS5047U-HTSM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    5

  • Body Breadth:

    4.4 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    16 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SPI INTERFACE

  • Output Range:

    0.40-2.80V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

AS5047U-HTSM Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the AS5047U-HTSM can be found in the application note AN5000, which provides guidelines for optimal PCB design, thermal management, and EMI shielding.
  • Calibration of the AS5047U-HTSM involves adjusting the zero position and gain of the sensor. The calibration process is described in the datasheet and application notes, and may require the use of specialized software and equipment.
  • The AS5047U-HTSM is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
  • The AS5047U-HTSM can be interfaced with a microcontroller or other digital system using a serial peripheral interface (SPI) or other digital communication protocols. The specific interface requirements will depend on the application and system design.
  • The typical current consumption of the AS5047U-HTSM is around 10-15 mA, but this can vary depending on the specific application, operating frequency, and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5047U-HTSM Overview

Use the download button to access the AS5047U-HTSM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS504, or try a keyword search, such as Rotary Position Sensors
