AS5048A-HTSP-500 - ams OSRAM

Description: Board Mount Hall Effect / Magnetic Sensors 14-bit rotary position sensor

Download AS5048A-HTSP-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

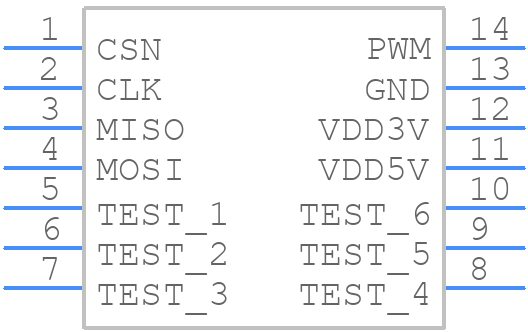

Symbol
AS5048A-HTSP-500 - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5048A-HTSP-500 - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-14
click to zoom
3D Models
AS5048A-HTSP-500 - ams OSRAM - 3D model - Small Outline Packages - TSSOP-14
click to zoom

AS5048A-HTSP-500 Details

  • Manufacturer Part Number:

    AS5048A-HTSP-500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    7

  • Additional Feature:

    SEATED HGT_MAX,DEVICE ALSO OPERATES AT 5V NOMINAL SUPPLY

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    15 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AS5048A-HTSP-500 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the AS5048A-HTSP-500 application note (AN5001) provided by ams OSRAM Group. It's essential to follow the recommended layout to ensure optimal performance and minimize noise.
  • The AS5048A-HTSP-500 outputs a 14-bit absolute angle value in two's complement format. You'll need to implement a microcontroller or a dedicated IC to read and process the output data. You can find example code and application notes on the ams OSRAM Group website.
  • The AS5048A-HTSP-500 is designed to work with diametrically magnetized magnets. ams OSRAM Group recommends using a magnet with a diameter of 5-10 mm and a height of 2-5 mm. The magnet's magnetic field strength should be around 1-2 kG.
  • Calibration is not required for the AS5048A-HTSP-500, as it's a self-calibrating device. However, you may need to perform a one-time initialization procedure to set the zero position and direction of rotation. Refer to the datasheet and application notes for more information.
  • The AS5048A-HTSP-500 is specified to operate from -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. Ensure your system design takes into account the operating temperature range and potential thermal gradients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5048A-HTSP-500 Overview

Use the download button to access the AS5048A-HTSP-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS504, or try a keyword search, such as Rotary Position Sensors
