The recommended PCB layout for optimal thermal performance involves using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a thermal pad connected to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure accurate magnetic field measurement, it's essential to follow proper PCB design and layout guidelines, minimize external interference, and calibrate the device according to the datasheet instructions. Additionally, using a shielded cable and a low-noise power supply can help to reduce noise and improve measurement accuracy.
The AS5050A-BQFT can operate within a temperature range of -40°C to 125°C, but the accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
Yes, the AS5050A-BQFT is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the device's performance may be affected by extreme vibration, so it's recommended to test the device in the specific application environment.
The AS5050A-BQFT can be interfaced with a microcontroller using a standard SPI or I2C interface. The device's datasheet provides detailed information on the communication protocol, pinout, and register maps. It's recommended to use a dedicated library or driver provided by the microcontroller manufacturer or a third-party vendor to simplify the interface and reduce development time.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS5050A-BQFT Overview

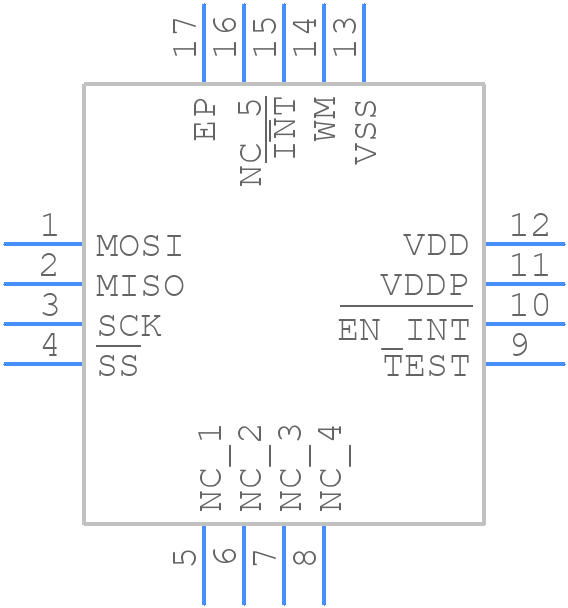

Use the download button to access the AS5050A-BQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS505,
or try a keyword search, such as Rotary Position Sensors
