AS5145B-HSST - ams OSRAM

Description: Board Mount Hall Effect / Magnetic Sensors AS5145B-HSST SSOP16 LF T&RDP

Download AS5145B-HSST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

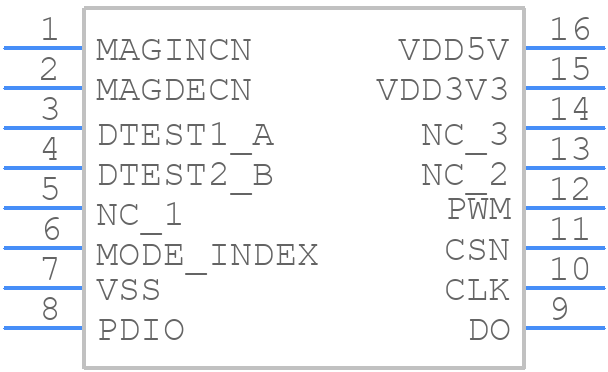

AS5145B-HSST - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5145B-HSST - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-16
click to zoom
3D Models
AS5145B-HSST - ams OSRAM - 3D model - Small Outline Packages - SSOP-16
click to zoom

AS5145B-HSST Details

  • Manufacturer Part Number:

    AS5145B-HSST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    7

  • Additional Feature:

    AEC-Q100; ALSO OPERATES AT 3.3V NOMINAL SUPPLY VOLTAGE

  • Body Breadth:

    5.3 mm

  • Body Height:

    1.73 mm

  • Body Length or Diameter:

    6.2 mm

  • Housing:

    PLASTIC

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    21 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SSI

  • Output Range:

    0.50-4.50V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

AS5145B-HSST Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the AS5145B-HSST can be found in the ams OSRAM Group's application note AN5000, which provides guidelines for optimal performance and noise reduction.
  • The AS5145B-HSST has built-in magnetic field strength detection and compensation, which helps to minimize the effects of external magnetic interference. However, it's still important to follow proper shielding and layout guidelines to ensure optimal performance.
  • The AS5145B-HSST is rated for operation from -40°C to 150°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the AS5145B-HSST is designed to meet the requirements of safety-critical applications, such as those found in the automotive and industrial sectors. It has been certified to meet various safety standards, including ISO 26262 and IEC 61508.
  • The AS5145B-HSST has a built-in power-on reset (POR) circuit that ensures the device resets correctly during power-up. It also has a brown-out detection (BOD) circuit that detects and responds to voltage drops or brown-outs.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5145B-HSST Overview

Use the download button to access the AS5145B-HSST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS514, or try a keyword search, such as Rotary Position Sensors
