AS5147P-HTST - ams OSRAM

Description: Rotary Position Sensor 5.5V/3.6V Digital Output Automotive 14-Pin TSSOP T/R

Download AS5147P-HTST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

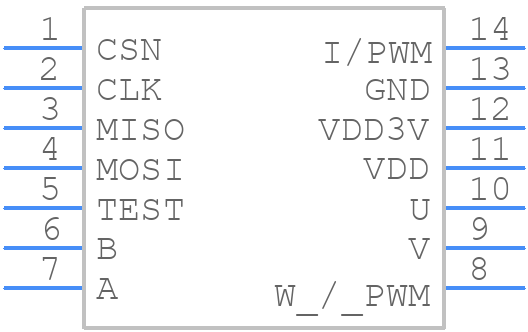

AS5147P-HTST - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5147P-HTST - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - AS5047D
click to zoom
3D Models
AS5147P-HTST - ams OSRAM - 3D model - Small Outline Packages - AS5047D
click to zoom

AS5147P-HTST Details

  • Manufacturer Part Number:

    AS5147P-HTST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    9

  • Additional Feature:

    IT ALSO OPERATES AT 5 V NOMINAL SUPPLY VOLTAGE

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Range:

    4.5-5.4V

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Termination Type:

    SOLDER

AS5147P-HTST Frequently Asked Questions (FAQs)

  • Ams OSRAM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the analog and digital supplies. The sensor should be placed as close as possible to the magnet, and the PCB layout should minimize noise and interference.
  • Calibration involves adjusting the zero-point and sensitivity of the sensor to match the specific magnet and application. Ams OSRAM provides a calibration procedure in the datasheet, which involves rotating the magnet 360° and recording the output values to determine the zero-point and sensitivity.
  • The AS5147P-HTST is rated for operation from -40°C to 150°C, but the accuracy and linearity of the sensor may degrade at extreme temperatures. Ams OSRAM recommends operating the sensor within the -20°C to 125°C range for optimal performance.
  • The AS5147P-HTST outputs a 14-bit digital signal that represents the angular position of the magnet. The output data can be processed using a microcontroller or a dedicated IC, and can be filtered or averaged to reduce noise and improve accuracy.
  • Ams OSRAM recommends using a diametrically magnetized magnet with a diameter of 2-5 mm and a height of 1-2 mm. The magnet should be made of a high-coercivity material such as NdFeB or SmCo, and should be centered on the sensor axis.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5147P-HTST Overview

Use the download button to access the AS5147P-HTST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS514, or try a keyword search, such as Rotary Position Sensors
