AS5147U-HTSM - ams OSRAM

Description: Board Mount Hall Effect / Magnetic Sensors 14-Bit Dual-Die On-Axis Magnetic Rotary Position Sensor with Up to 14-Bit Binary Incremental Pulse Count

Download AS5147U-HTSM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

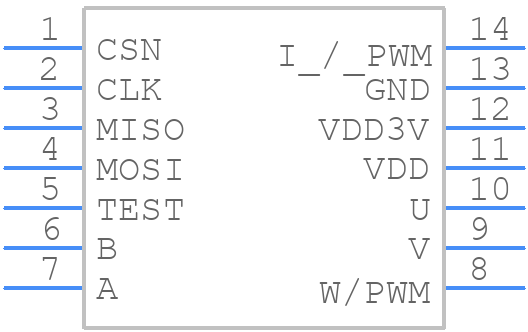

AS5147U-HTSM - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5147U-HTSM - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-14
click to zoom
3D Models
AS5147U-HTSM - ams OSRAM - 3D model - Small Outline Packages - TSSOP-14
click to zoom

AS5147U-HTSM Details

  • Manufacturer Part Number:

    AS5147U-HTSM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    9

  • Additional Feature:

    AEC-Q100, ISO-26262-ASIL-D

  • Body Breadth:

    4.4 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    16 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SPI INTERFACE

  • Output Range:

    0.40-2.80V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Termination Type:

    SOLDER

AS5147U-HTSM Frequently Asked Questions (FAQs)

  • A symmetrical PCB layout with a solid ground plane and a separate power plane is recommended. The device should be placed close to the magnet and the PCB should be designed to minimize noise and interference.
  • Calibration involves adjusting the zero-point and sensitivity of the device. This can be done by rotating the magnet 360° and recording the output values. The zero-point can be adjusted by applying a offset to the output values, and the sensitivity can be adjusted by applying a gain factor.
  • A diametrically magnetized magnet with a diameter of 2-5mm and a height of 1-2mm is recommended. The magnet should be made of a high-remanence material such as NdFeB or SmCo.
  • The output data from the AS5147U-HTSM is a 14-bit digital value representing the angle of the magnet. The data can be processed using a microcontroller or a dedicated IC. The data should be filtered and averaged to reduce noise and improve accuracy.
  • The AS5147U-HTSM operates over a temperature range of -40°C to 150°C. However, the accuracy and sensitivity of the device may be affected at extreme temperatures.
