The recommended PCB layout for the AS5247U-HTQT involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the magnet. Ams OSRAM provides a reference layout in their application note AN5247U-00-01.
Calibration of the AS5247U-HTQT involves adjusting the offset and gain of the device to match the specific magnet and system requirements. Ams OSRAM provides a calibration procedure in their application note AN5247U-00-01, which involves measuring the device output at multiple magnet positions and calculating the offset and gain coefficients.
The AS5247U-HTQT is rated for operation from -40°C to 150°C, but the device's accuracy and performance may degrade at temperatures above 125°C. It's recommended to consult the datasheet and application notes for specific temperature-related performance characteristics.
The AS5247U-HTQT is optimized for use with a specific magnet type and size, but it can be used with other magnets with some adjustments. The device's performance may vary depending on the magnet's strength, size, and shape. Ams OSRAM provides guidelines for magnet selection and optimization in their application notes.
To minimize EMI and RFI effects on the AS5247U-HTQT, it's recommended to use proper shielding, grounding, and filtering techniques. Ams OSRAM provides guidelines for EMI and RFI mitigation in their application notes, including the use of shielding cans, filter capacitors, and proper PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS5247U-HTQT Overview

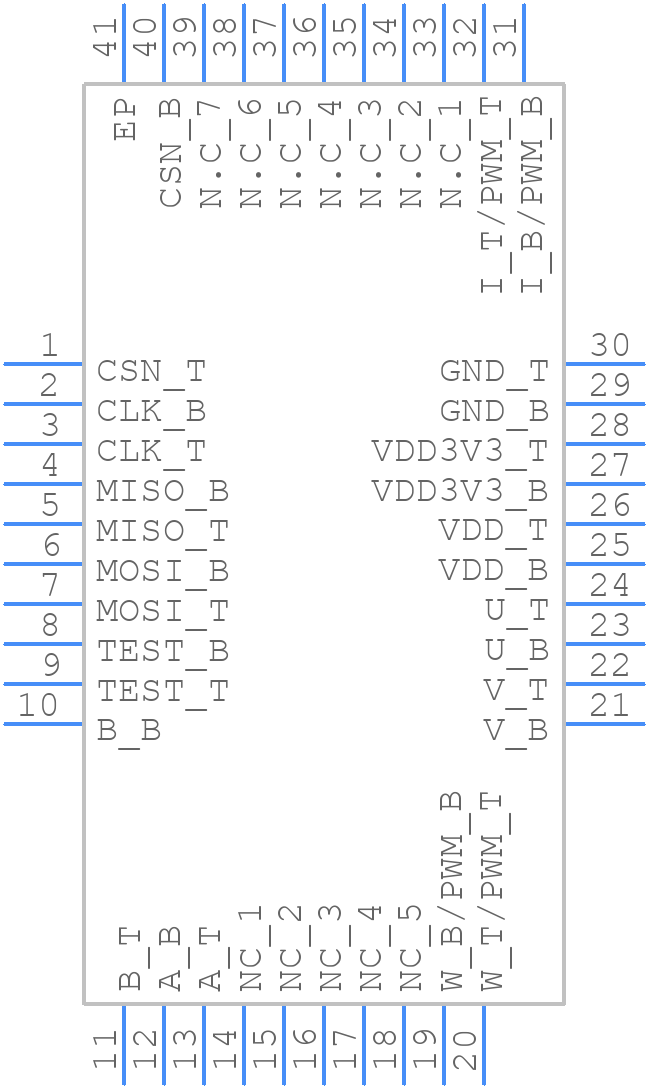

Use the download button to access the AS5247U-HTQT schematic symbol, PCB footprint, and 3D model.
