AS5600-ASOM - ams OSRAM

Description: IC SENSOR MAG ROTARY 12BIT 8SOIC

Download AS5600-ASOM Model

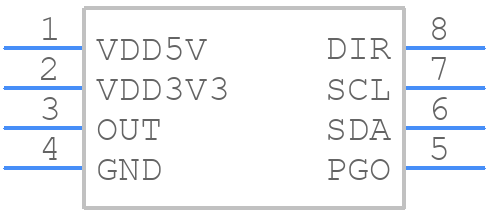

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AS5600-ASOM - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
AS5600-ASOM - ams OSRAM  - 3D model - Small Outline Packages - SOIC-8
click to zoom

AS5600-ASOM Details

  • Manufacturer Part Number:

    AS5600-ASOM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    9

  • Additional Feature:

    SEATED HGT_MIN; CAN ALSO OPERATE AT 5V NOMINAL IN 5V MODE; OUTPUT RANGE IN 5V MODE IS 0.40-4.50V

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.25 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    6.5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.40-2.80V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Termination Type:

    SOLDER

AS5600-ASOM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the MCU close together to minimize noise and ensure accurate readings.
  • Calibration involves setting the zero-point and gain of the sensor. Use the AS5600-ASOM's built-in calibration mode and follow the datasheet's calibration procedure. You may also need to perform additional calibration steps specific to your application.
  • The AS5600-ASOM can handle rotation speeds up to 20,000 rpm. However, the maximum speed may vary depending on the specific application and the quality of the magnet used.
  • Yes, but the sensor's performance may be affected. The AS5600-ASOM is optimized for use with ams OSRAM's recommended magnets. Using a non-standard magnet may require additional calibration and may affect the sensor's accuracy and reliability.
  • Follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the sensor and surrounding components are properly grounded. Additionally, follow the datasheet's guidelines for electromagnetic interference (EMI) filtering.
