AS5600L-ASOM - ams OSRAM

Description: Board Mount Motion & Position Sensors AS5600L-ASOM SOIC8 LF T&RDP

Download AS5600L-ASOM Model

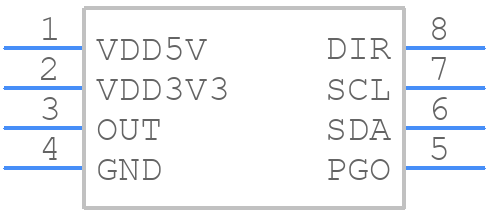

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AS5600L-ASOM - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
AS5600L-ASOM - ams OSRAM  - 3D model - Small Outline Packages - SOIC-8
click to zoom

AS5600L-ASOM Details

  • Manufacturer Part Number:

    AS5600L-ASOM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    9

  • Additional Feature:

    SEATED HGT_MIN; CAN ALSO OPERATE AT 5V NOMINAL IN 5V MODE; OUTPUT RANGE IN 5V MODE IS 0.40-4.50V

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.25 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    6.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.40-2.80V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AS5600L-ASOM Frequently Asked Questions (FAQs)

  • Ams OSRAM provides a recommended PCB layout in the application note AN5000, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy of the AS5600L-ASOM.
  • Calibration of the AS5600L-ASOM involves adjusting the internal gain and offset settings to match the specific requirements of your application. Ams OSRAM provides a calibration procedure in the datasheet, which involves measuring the output voltage at different magnetic field strengths and adjusting the gain and offset settings accordingly.
  • The AS5600L-ASOM is specified to operate over a temperature range of -40°C to 125°C, but the actual operating temperature range may be limited by the specific application and the thermal management of the system.
  • The AS5600L-ASOM provides a digital output that can be interfaced with a microcontroller using a standard SPI or I2C interface. Ams OSRAM provides example code and interface guidelines in the datasheet and application notes to help with the integration.
  • The typical current consumption of the AS5600L-ASOM is around 10mA, but this can vary depending on the specific operating conditions and the frequency of the output signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5600L-ASOM Overview

Use the download button to access the AS5600L-ASOM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS560, or try a keyword search, such as Rotary Position Sensors
