SEATED HGT_MIN; CAN ALSO OPERATE AT 5V NOMINAL IN 5V MODE; OUTPUT RANGE IN 5V MODE IS 0.40-4.50V
Body Breadth:
3.9 mm
Body Height:
1.25 mm
Body Length or Diameter:
4.9 mm
Housing:
PLASTIC
JESD-609 Code:
e3
Measurement Range-Max (deg):
360 deg
Mounting Feature:
SURFACE MOUNT
Operating Current-Max:
6.4 mA
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Interface Type:
2-WIRE INTERFACE
Output Range:
0.40-2.80V
Output Type:
DIGITAL VOLTAGE
Package Shape/Style:
RECTANGULAR
Sensors/Transducers Type:
ROTARY POSITION SENSOR,HALL EFFECT
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Termination Type:
SOLDER
AS5600L-ASOP Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance of the AS5600L-ASOP involves keeping the sensor and the magnet as close as possible, using a symmetrical layout, and minimizing the distance between the sensor and the PCB ground plane. Ams OSRAM provides a reference layout in their application note AN5000, which can be used as a starting point.
Calibration of the AS5600L-ASOP involves adjusting the zero-point and gain of the sensor to match the specific requirements of your application. Ams OSRAM provides a calibration procedure in their application note AN5000, which involves rotating the magnet 360 degrees and recording the output values. The zero-point and gain can then be adjusted based on the recorded values.
The maximum operating temperature of the AS5600L-ASOP is 125°C, as specified in the datasheet. However, it's recommended to operate the sensor within a temperature range of -40°C to 85°C for optimal performance and accuracy.
Yes, the AS5600L-ASOP is designed to operate in high-vibration environments. However, it's recommended to ensure that the sensor and magnet are properly secured and that the vibration does not exceed 10g. Additionally, the sensor's output may need to be filtered to remove noise caused by the vibration.
The AS5600L-ASOP can be interfaced with a microcontroller using the I2C or SPI interface. Ams OSRAM provides a detailed description of the interface protocol in their datasheet and application notes. The sensor's output can be read using a microcontroller's I2C or SPI peripheral, and the data can be processed and analyzed using the microcontroller's firmware.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS5600L-ASOP Overview

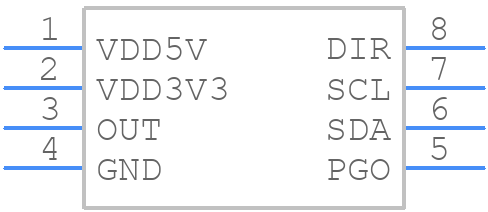

Use the download button to access the AS5600L-ASOP schematic symbol, PCB footprint, and 3D model.
