AS5600L-AWLM - ams OSRAM

Description: Board Mount Motion & Position Sensors AS5600L-AWLM WLP LF T&R

Download AS5600L-AWLM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

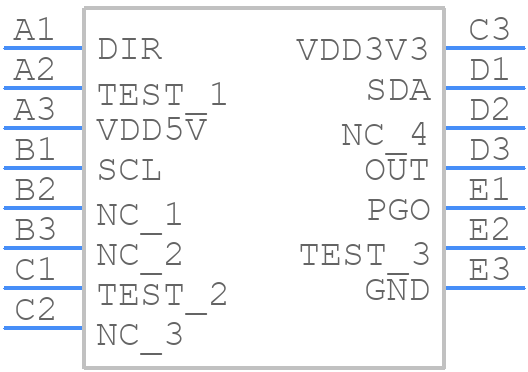

AS5600L-AWLM - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
AS5600L-AWLM - ams OSRAM PCB footprint - BGA - BGA - WL-CSP
click to zoom
3D Models
AS5600L-AWLM - ams OSRAM - 3D model - BGA - WL-CSP
click to zoom

AS5600L-AWLM Details

  • Manufacturer Part Number:

    AS5600L-AWLM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE AT 5V NOMINAL IN 5V MODE; OUTPUT RANGE IN 5V MODE IS 0.40-4.50V

  • Body Height:

    0.368 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    6.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.40-2.80V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

AS5600L-AWLM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the MCU close together to minimize noise and ensure a stable supply voltage.
  • Calibration involves setting the zero-point and the gain of the sensor. Use the AS5600L-AWLM's built-in calibration mode and follow the instructions in the datasheet or the application note AN5000.
  • The AS5600L-AWLM can handle rotation speeds up to 20,000 rpm. However, the maximum speed may vary depending on the specific application and the quality of the magnet used.
  • Yes, but the sensor's performance may vary depending on the magnet's properties. The recommended magnet is a diametrically magnetized cylinder with a diameter of 2-5 mm and a length of 1-5 mm.
  • The AS5600L-AWLM outputs 12-bit or 14-bit data, depending on the mode. Use a MCU with a 12-bit or 14-bit ADC to read the data. You may need to implement a digital filter to reduce noise and improve accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS5600L-AWLM Overview

Use the download button to access the AS5600L-AWLM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS560, or try a keyword search, such as Rotary Position Sensors
