AS6C6264-55PIN - Alliance Memory

Description: SRAM 64K, 2.7-5.5V, 55ns 8K x 8 CMOS SRAM

Download AS6C6264-55PIN Model

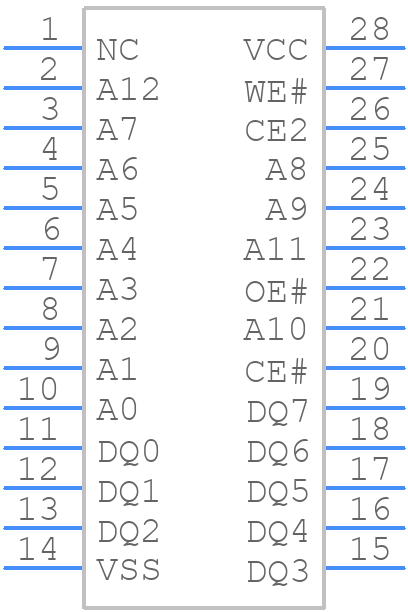

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

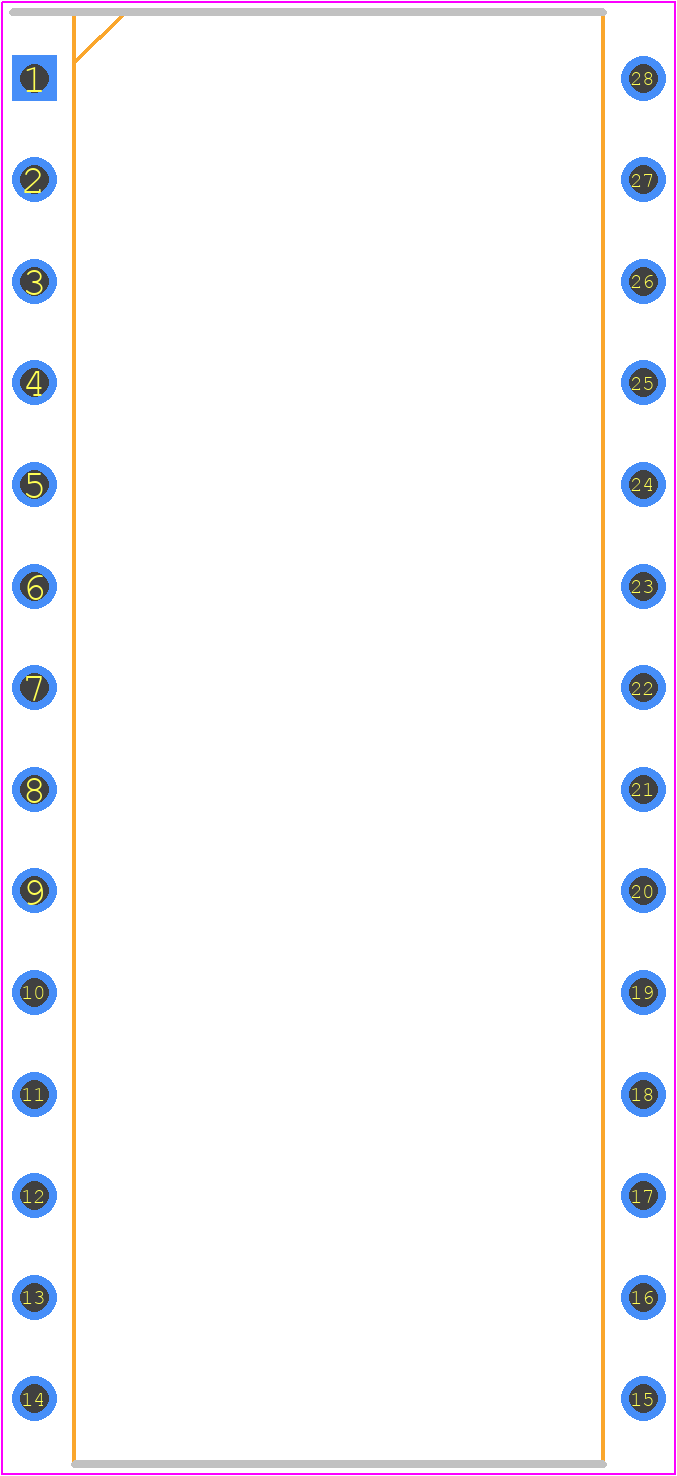

AS6C6264-55PIN - Alliance Memory PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AS6C6264-55PIN-1
click to zoom
3D Models
AS6C6264-55PIN - Alliance Memory  - 3D model - Dual-In-Line Packages - AS6C6264-55PIN-1
click to zoom

AS6C6264-55PIN Details

  • Manufacturer Part Number:

    AS6C6264-55PIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4

  • Access Time-Max:

    55 ns

  • Additional Feature:

    LG-MAX; SEATED HGT CALCULATED

  • JESD-30 Code:

    R-PDIP-T28

  • Length:

    36.322 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.191 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    15.24 mm

AS6C6264-55PIN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AS6C6264-55PIN is -40°C to 85°C.
  • The power-up and power-down sequences for the AS6C6264-55PIN should be handled according to the recommended power-up and power-down sequences outlined in the datasheet to prevent damage to the device.
  • The recommended voltage range for the AS6C6264-55PIN is 4.5V to 5.5V.
  • To implement a reliable write operation for the AS6C6264-55PIN, ensure that the write enable (WE) signal is low, the output enable (OE) signal is high, and the chip select (CE) signal is low.
  • The maximum clock frequency supported by the AS6C6264-55PIN is 55 MHz.
