The recommended PCB layout for the AS7261-BLGT can be found in the application note AN000369, which provides guidelines for optimal PCB design, including component placement, routing, and thermal management.
Calibration of the AS7261-BLGT involves a series of steps, including dark current correction, gain calibration, and spectral response calibration. The calibration process is described in detail in the application note AN000370.
The AS7261-BLGT is specified to operate over a temperature range of -40°C to 85°C, but it's recommended to operate within the range of 0°C to 60°C for optimal performance and accuracy.
Yes, the AS7261-BLGT can be used for outdoor applications, but it's essential to ensure proper environmental protection, such as using a UV-resistant window or a protective coating, to prevent degradation of the optical filters.
The AS7261-BLGT communicates via an I2C interface, and the device can be connected to a microcontroller using a standard I2C bus. The communication protocol and register map are described in the datasheet.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS7261-BLGT Overview

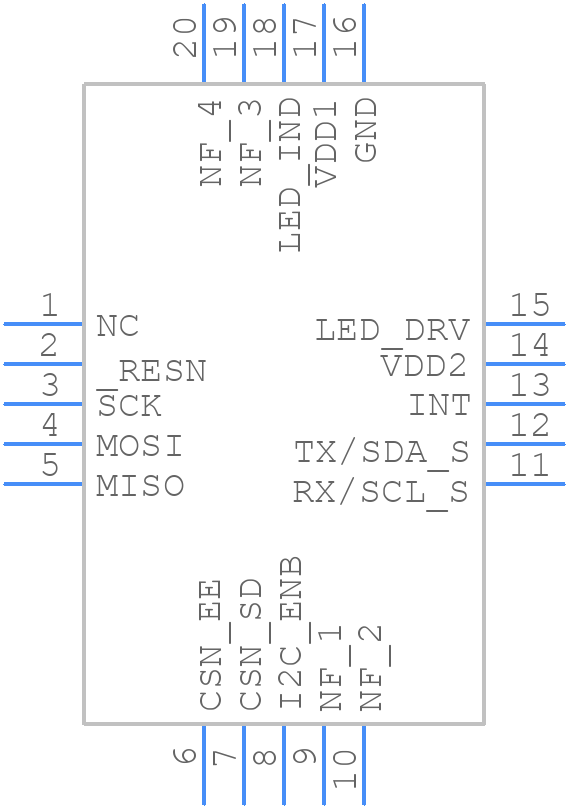

Use the download button to access the AS7261-BLGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS726,
or try a keyword search, such as Other Sensors/Transducers
