A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital signals separate, and use a common ground point for the analog and digital grounds.
Use a light shield or a mechanical aperture to reduce ambient light. You can also use a dark chamber or a light-tight enclosure to minimize ambient light interference.
Power up the VDD pin first, followed by the VDDIO pin. Ensure that the VDD pin is stable before applying a clock signal to the SCL pin.
Perform a dark calibration by taking multiple readings with the sensor covered, and then calculate the average value. Use this value as the dark calibration point. For spectral calibration, use a calibrated light source and take readings at multiple wavelengths.
The maximum clock frequency for the I2C interface is 400 kHz. However, it's recommended to use a clock frequency of 100 kHz or lower for reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS7343-DLGM Overview

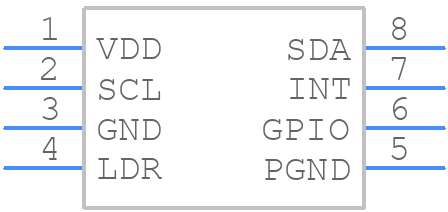

Use the download button to access the AS7343-DLGM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS734,
or try a keyword search, such as Other Sensors/Transducers
