AS7C256B-15PIN - Alliance Memory

Description: SRAM SRAM, 256K, 32K x 8, 5V, 28pin PDIP, 15ns, Industrial Temp - Tube

Download AS7C256B-15PIN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

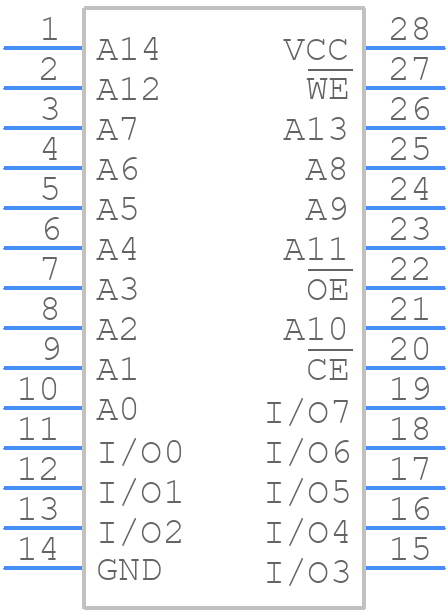

AS7C256B-15PIN - Alliance Memory - PCB symbol
click to zoom
PCB Footprints

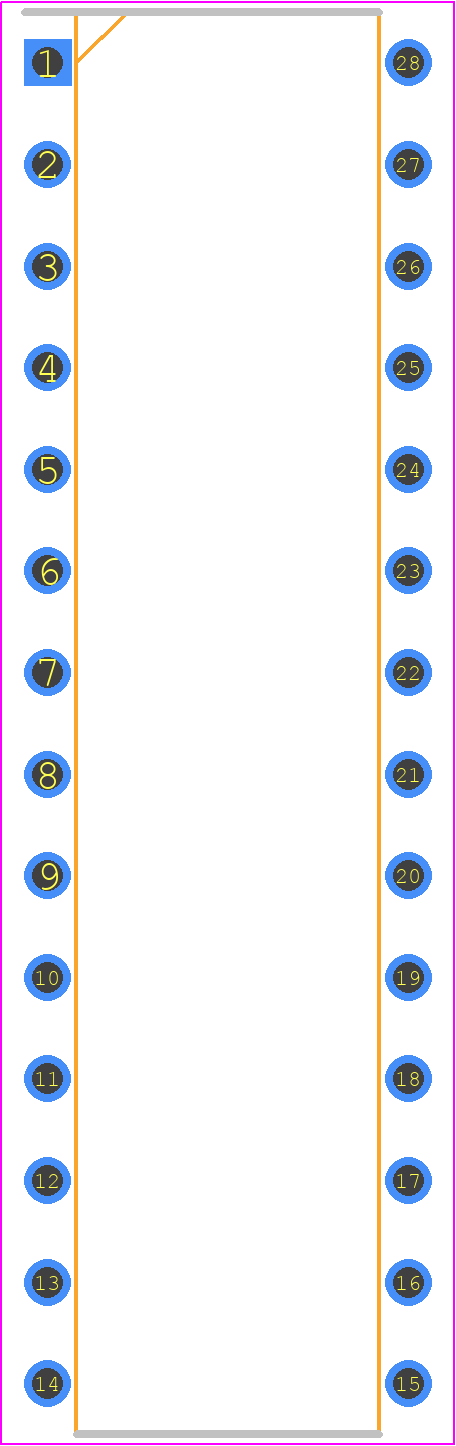

AS7C256B-15PIN - Alliance Memory PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP (28)
click to zoom
3D Models
AS7C256B-15PIN - Alliance Memory - 3D model - Dual-In-Line Packages - DIP (28)
click to zoom

AS7C256B-15PIN Details

  • Manufacturer Part Number:

    AS7C256B-15PIN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    0

  • Memory IC Type:

    STANDARD SRAM

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

AS7C256B-15PIN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AS7C256B-15PIN is -40°C to 85°C.
  • The power-up and power-down sequences for the AS7C256B-15PIN should be handled according to the recommended power-up and power-down sequences outlined in the datasheet to prevent damage to the device.
  • The recommended voltage range for the AS7C256B-15PIN is 4.5V to 5.5V.
  • To implement a reliable write operation for the AS7C256B-15PIN, ensure that the write enable (WE) signal is low, the output enable (OE) signal is high, and the chip select (CE) signal is low.
  • The maximum clock frequency supported by the AS7C256B-15PIN is 15 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS7C256B-15PIN Overview

Use the download button to access the AS7C256B-15PIN schematic symbol, PCB footprint, and 3D model.
