We use Cookies to give you the best experience on our website. By using our website and services, you expressly agree to the placement of our performance, functionality and advertising cookies. Please see our Privacy Policy for more information.

OK, Thanks

Notice for California users only:

This website or its third-party tools processes personal data.
In case of sale of your personal information, you may opt out by using the link: do not sell my personal information.

Otherwise, by continuing to use our website, you expressly agree to the use of personal information. To find out more about the categories of personal information collected and the purposes for which such information will be used, please refer to our Privacy Policy.

I understand
Opt-Out

If you are a California resident, the California Consumer Privacy Act ("CCPA") provides you with the right to opt out of the 'sale' of your Personal Information. Please review our Privacy Policy for a more detailed description of how we collect, use, and share the Personal Information of California residents in operating our business, your privacy rights as a California resident, and how to exercise your rights as a California resident.

To request that Supplyframe may not 'sell' your Personal Information, please submit the form below. Please note that some transfers of your Personal Information may not be considered 'sales' and certain exemptions may apply under the CCPA. Your selection does not affect other use and sharing of your information as outlined in our Privacy Policy.

Supplyframe is committed to protecting and respecting your privacy, and we’ll only use your personal information to administer your account and to provide the products and services you requested from us.

By clicking submit below, you consent to allow Supplyframe to store and process the personal information submitted above to provide you the content requested.

Part Image

AS7C34098A-12TIN - Alliance Memory

Description: Alliance Memory AS7C34098A-12TIN SRAM Memory, 4Mbit, 3 → 3.6 V, 12ns 44-Pin TSOP

Download AS7C34098A-12TIN Model
Schematic

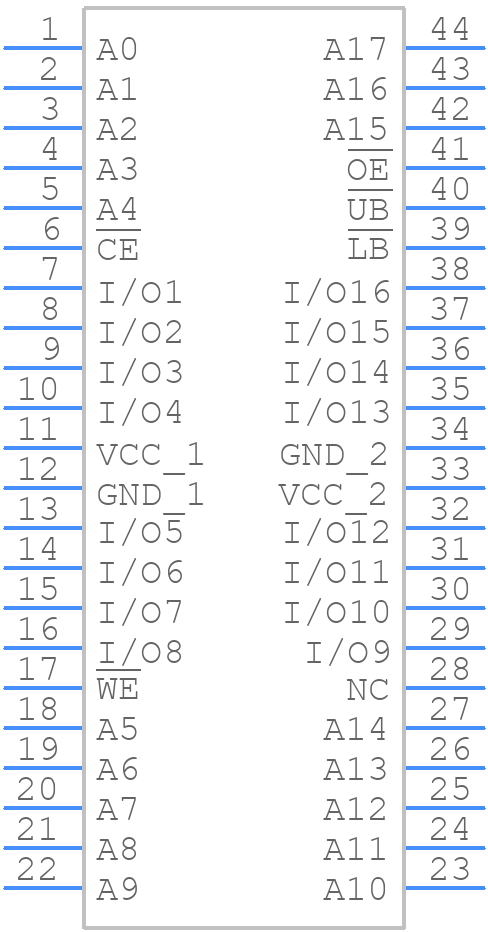

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

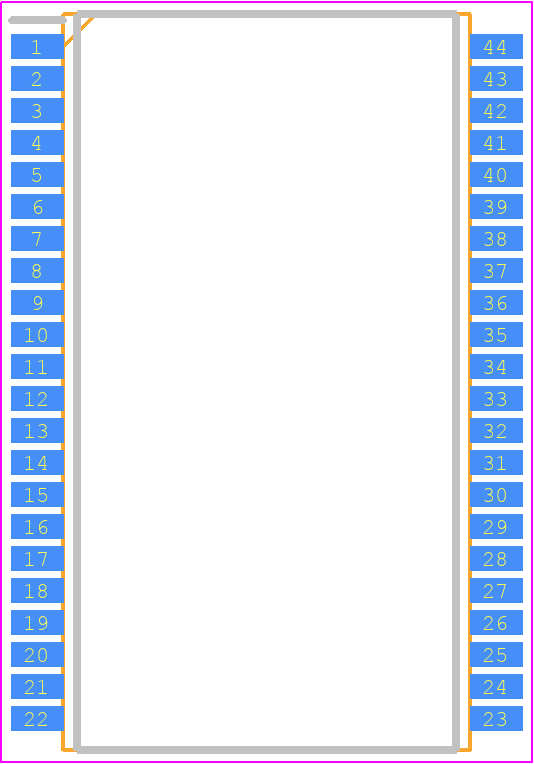

AS7C34098A-12TIN - Alliance Memory PCB footprint - Small Outline Packages - Small Outline Packages - 44-pin TSOP 2
click to zoom
3D Models
AS7C34098A-12TIN - Alliance Memory  - 3D model - Small Outline Packages - 44-pin TSOP 2
click to zoom

AS7C34098A-12TIN Details

  • Manufacturer Part Number:

    AS7C34098A-12TIN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP2

  • Pin Count:

    44

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.B.2.A

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Alliance Memory Inc

  • Risk Rank:

    1.2

  • YTEOL:

    4

  • Access Time-Max:

    12 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3/e6

  • Length:

    18.415 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.008 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    10.16 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS7C34098A-12TIN Overview

Use the download button to access the AS7C34098A-12TIN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS7C3, or try a keyword search, such as SRAMs

Parts related to AS7C34098A-12TIN

Showing 0 results

AS7C34098A-12TIN Alternates

Showing results

Image Part Number Model
Part Image UPD444016LG5-A12Y-7JF-A NEC Electronics Group

Standard SRAM, 256KX16, 12ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44

Part Image UPD444016LG5-A12Y-7JF NEC Electronics Group

Standard SRAM, 256KX16, 12ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44

Part Image KM616V4002BLT-12 Samsung Semiconductor

Standard SRAM, 256KX16, 12ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44

Part Image CY7C1041CV33-12ZC Cypress Semiconductor

Standard SRAM, 256KX16, 12ns, CMOS, PDSO44, TSOP2-44

Part Image 71V416YL12PHG8 Integrated Device Technology Inc

Standard SRAM, 256KX16, 12ns, CMOS, PDSO44, 0.400 INCH, ROHS COMPLIANT, TSOP2-44

For a full list of alternate parts for AS7C34098A-12TIN, check out Findchips.com
