The recommended PCB layout involves placing the device on a 2-layer or 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal pad. Additionally, the device should be operated within the specified temperature range.
The ASA01A18-LS is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, use a shielded enclosure, keep the device away from sensitive circuits, and follow good PCB layout practices.
Yes, the ASA01A18-LS can be used in a redundant or parallel configuration to improve system reliability and availability. However, it's essential to follow the manufacturer's guidelines and ensure proper synchronization and control of the devices.
The ASA01A18-LS is commonly used in industrial power supplies, motor drives, and renewable energy systems. It's also suitable for use in medical devices, aerospace, and defense applications where high reliability and efficiency are critical.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASA01A18-LS Overview

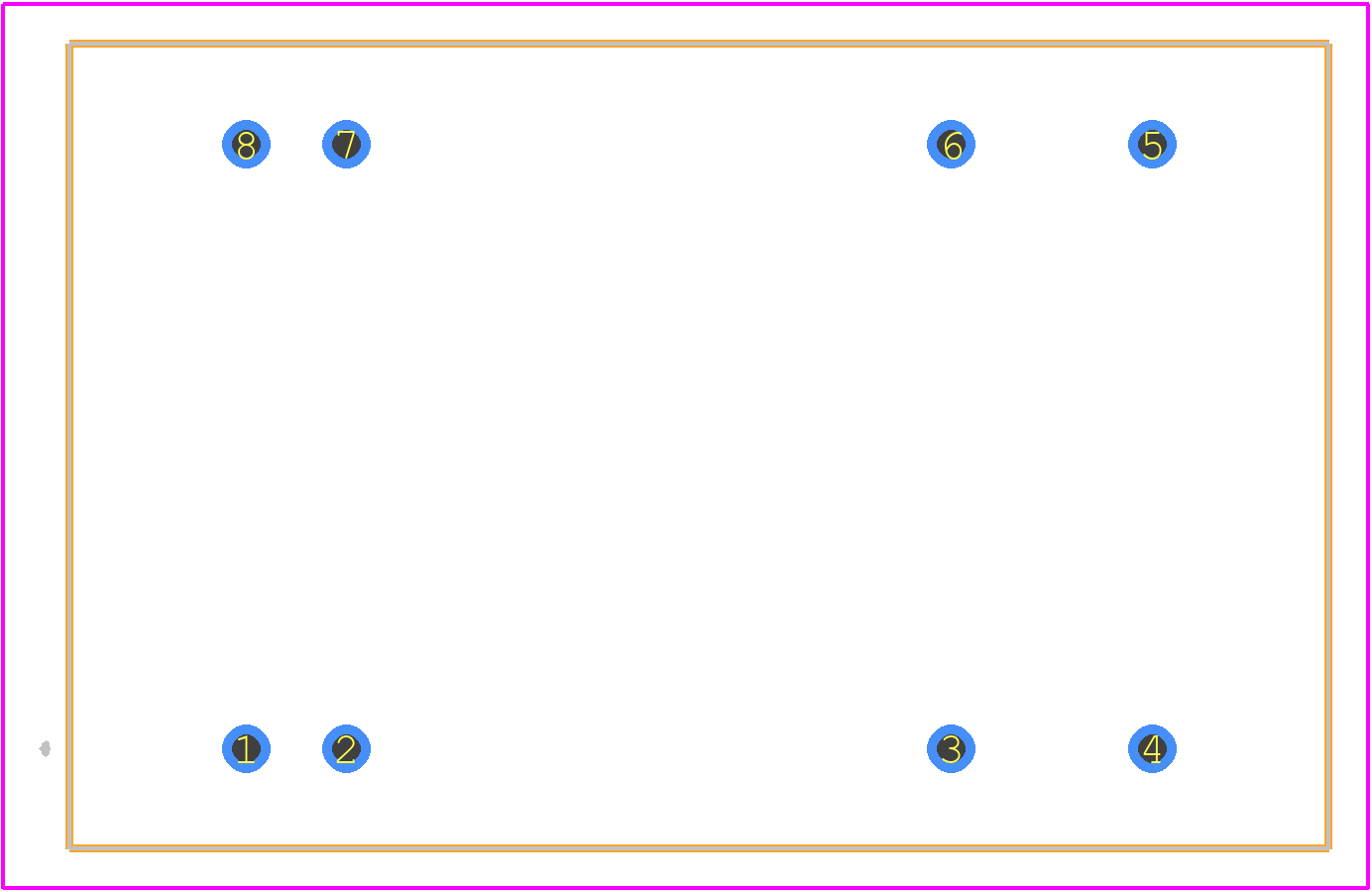

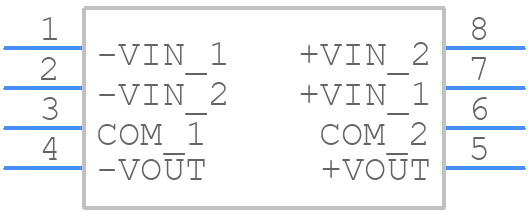

Use the download button to access the ASA01A18-LS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASA01,
or try a keyword search, such as Power Supply Modules
