The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application note.
Yes, the ASE42G04 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard, which means it can operate in environments with vibrations up to 15 g.
The maximum operating temperature range for the ASE42G04 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
Yes, the ASE42G04 is compatible with lead-free soldering processes. It meets the RoHS and REACH regulations, and its terminals are designed to withstand the higher temperatures associated with lead-free soldering.
The recommended wire size for the screw terminals is 24 AWG to 14 AWG. Using wires outside this range may affect the reliability of the connection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASE42G04 Overview

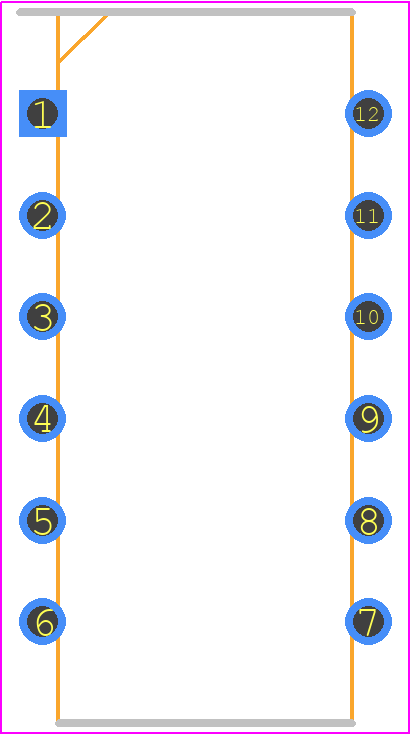

Use the download button to access the ASE42G04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASE42,
or try a keyword search, such as Slide Switches
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
