ASE6204 - TE Connectivity

Description: PCB Slide Switch Six Pole Double Throw (6PDT) Momentary 300 mA @ 115 V ac Extended, Slide

Download ASE6204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

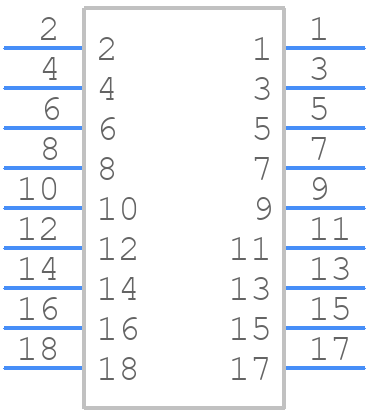

ASE6204 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

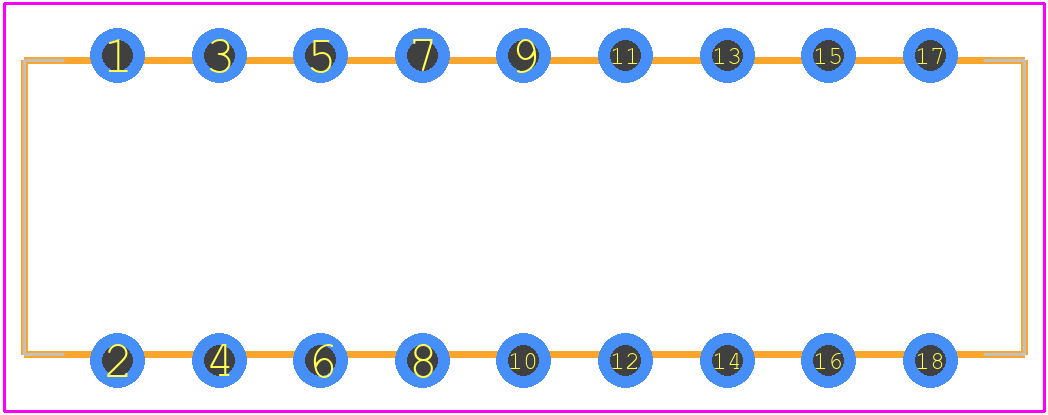

ASE6204 - TE Connectivity PCB footprint - Other - Other - ASE6204-2
click to zoom
3D Models
ASE6204 - TE Connectivity - 3D model - Other - ASE6204-2
click to zoom

ASE6204 Details

  • Manufacturer Part Number:

    ASE6204

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.95

  • Actuator Color:

    NATURAL

  • Actuator Length:

    0.11 inch

  • Actuator Material:

    NYLON

  • Actuator Travel:

    2.794 mm

  • Actuator Type:

    EXTENDED TOP TYPE

  • Body Breadth:

    7.37 mm

  • Body Height:

    4.45 mm

  • Body Length or Diameter:

    25.4 mm

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    .3A@115VAC

  • Contact Current(AC)-Max:

    0.3 A

  • Contact Current(DC)-Max:

    0.3 A

  • Contact Function:

    ON-ON

  • Contact Voltage(AC)-Max:

    115 V

  • Contact Voltage(DC)-Max:

    28 V

  • Electrical Life:

    15000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    2

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    6PDT

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

ASE6204 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ASE6204. The device should be placed near the connector to minimize signal loss and noise.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the power supply voltage and current according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum cable length supported by ASE6204 depends on the specific application and the type of cable used. However, as a general guideline, TE Connectivity recommends a maximum cable length of 100 meters for Category 5e cables and 50 meters for Category 6 cables.
  • Yes, ASE6204 is compatible with Power over Ethernet (PoE) applications. However, it is recommended to use a PoE-enabled PHY and to follow the IEEE 802.3af/at standard for PoE applications.
  • To troubleshoot common issues with ASE6204, it is recommended to use diagnostic tools such as oscilloscopes, logic analyzers, and network protocol analyzers to identify the root cause of the issue. Additionally, checking the PCB layout, power supply, and signal integrity can help to identify and resolve the issue.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASE6204 Overview

Use the download button to access the ASE6204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASE62, or try a keyword search, such as Slide Switches
