ASF4204 Frequently Asked Questions (FAQs)

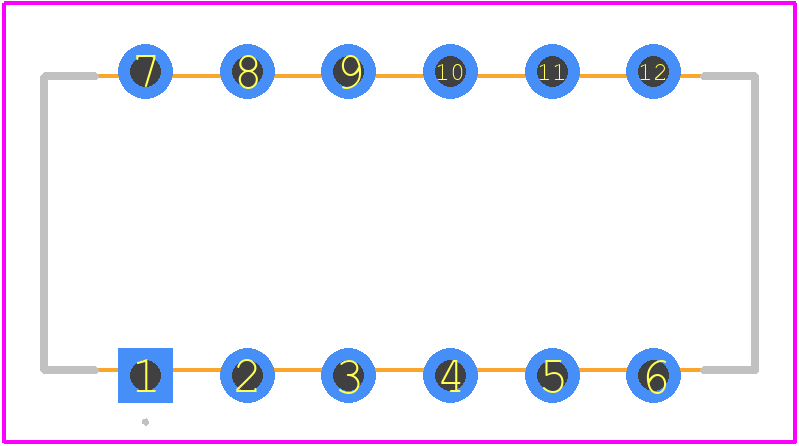

• What is the recommended PCB layout and land pattern for the ASF4204?
  TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-104, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and signal integrity.
• How do I ensure the ASF4204 is properly soldered and avoid cold joints?
  To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Use a solder with a melting point between 217°C to 227°C, and ensure the soldering iron is set to a temperature of 250°C to 270°C. Avoid applying excessive force or vibration during the soldering process.
• What is the maximum operating temperature range for the ASF4204?
  The ASF4204 is rated for operation from -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this temperature range for extended periods.
• Can I use the ASF4204 in a high-vibration or high-shock environment?
  Yes, the ASF4204 is designed to withstand high-vibration and high-shock environments. However, it's crucial to follow proper mounting and assembly procedures to ensure the device is securely attached to the PCB and can withstand the expected environmental stresses.
• How do I troubleshoot issues with the ASF4204, such as unexpected behavior or failure?
  To troubleshoot issues with the ASF4204, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes or logic analyzers to debug signal issues. If the problem persists, contact TE Connectivity's technical support for further assistance.
