ASFM0242X - Panasonic

Description: Safety Relays 24VDC 11mA 1 Form A 1 Form B RTII

Download ASFM0242X Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASFM0242X model

Email notifications will be applied after download.

Send part feedback

Symbol

ASFM0242X - Panasonic - PCB symbol

PCB Footprints

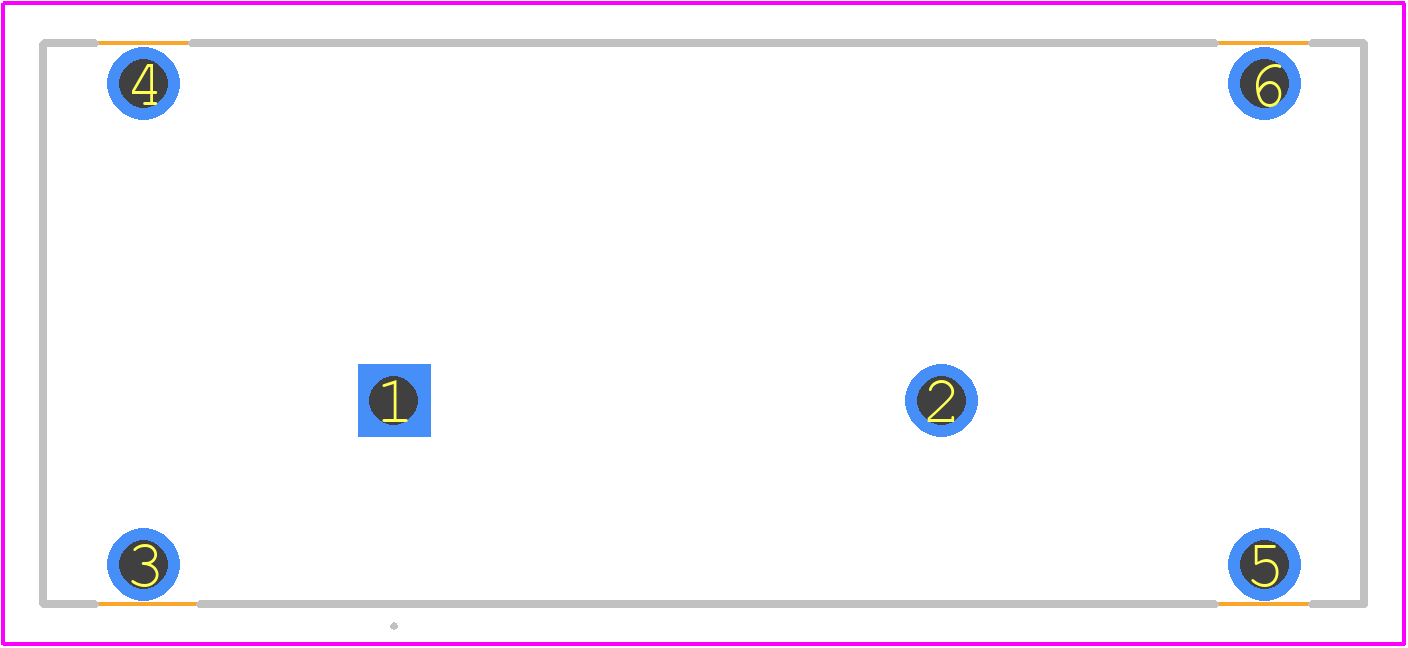

ASFM0242X - Panasonic PCB footprint - Other - Other - 33mmx14mmx7.8mm

3D Models

ASFM0242X - Panasonic - 3D model - Other - 33mmx14mmx7.8mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASFM0242X
Part Number ASFM0242X
Manufacturer Panasonic
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 33mmx14mmx7.8mm
Released Date Sep 15, 2022
Last Modified Date Apr 27, 2026 11:41 AM UTC
Pinout / Pin List Click Here (Member Only)

ASFM0242X Details
