ASGTX-C-100.000MHZ-2 - ABRACON

Description: 100 MHz VCTCXO LVCMOS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead

Download ASGTX-C-100.000MHZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

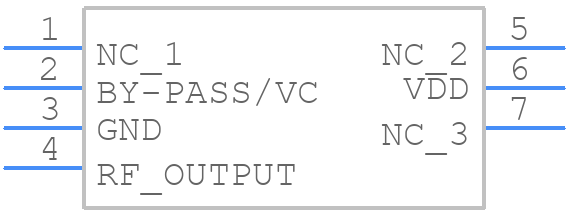

ASGTX-C-100.000MHZ-2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASGTX-C-100.000MHZ-2 - ABRACON PCB footprint - Other - Other - ASGTX
click to zoom
3D Models
ASGTX-C-100.000MHZ-2 - ABRACON - 3D model - Other - ASGTX
click to zoom

ASGTX-C-100.000MHZ-2 Details

  • Manufacturer Part Number:

    ASGTX-C-100.000MHZ-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    New Zealand

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Control Voltage-Max:

    2.5 V

  • Fall Time-Max:

    1 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    10 ppm

  • Frequency Stability:

    2%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    DILCC6,.28,110

  • Physical Dimension:

    9.0mm x 7.0mm x 2.24mm

  • Rise Time-Max:

    1 ns

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASGTX-C-100.000MHZ-2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the ASGTX-C-100.000MHZ-2 is -40°C to +125°C.
  • While the ASGTX-C-100.000MHZ-2 is designed to operate in a variety of environments, it's recommended to use it in a humidity-controlled environment with a relative humidity of 60% or less to ensure optimal performance and reliability.
  • The typical power consumption of the ASGTX-C-100.000MHZ-2 is around 10-20mA, depending on the specific application and operating conditions.
  • Yes, the ASGTX-C-100.000MHZ-2 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • Abracon Corporation provides a recommended PCB layout and land pattern for the ASGTX-C-100.000MHZ-2 in the datasheet or through their technical support team. It's essential to follow these guidelines to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASGTX-C-100.000MHZ-2 Overview

Use the download button to access the ASGTX-C-100.000MHZ-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX, or try a keyword search, such as TCVCXO
