Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias near the oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane to reduce noise and EMI.
To ensure reliable startup, Abracon recommends following the recommended power-up sequence, using a stable power supply, and ensuring the oscillator is properly decoupled. Additionally, it's recommended to add a 10-100nF capacitor in parallel with the oscillator to filter out any noise or glitches.
The ASGTX-C-24.576MHZ-1 is rated for operation from -40°C to +85°C. However, it's recommended to derate the oscillator's frequency tolerance and stability over temperature to ensure reliable operation in extreme environments.
The ASGTX-C-24.576MHZ-1 is designed to meet the requirements of MIL-STD-883, Method 2002.5 for vibration and MIL-STD-883, Method 2001.5 for shock. However, it's recommended to consult with Abracon's application engineers to ensure the oscillator meets the specific requirements of your application.
Common issues that can cause the oscillator to not oscillate or produce an unstable frequency include incorrect PCB layout, inadequate power supply decoupling, or excessive noise or EMI. Abracon recommends following the troubleshooting guide in the datasheet and consulting with their application engineers for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASGTX-C-24.576MHZ-1 Overview

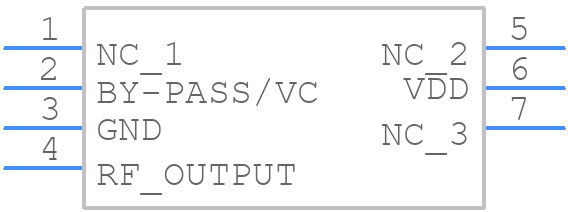

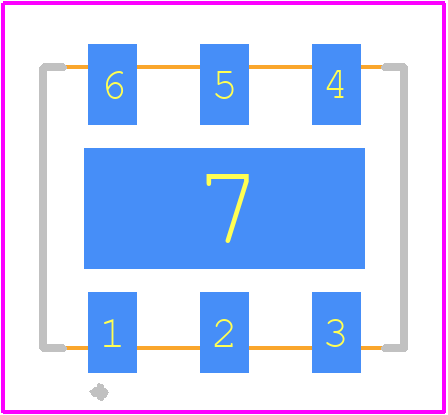

Use the download button to access the ASGTX-C-24.576MHZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX,
or try a keyword search, such as TCVCXO
