ASGTX-D-10.000MHZ-1 - ABRACON

Description: Oscillator TCXO/VC-TCXO 10MHz ±1.5ppm (Tol) ±1ppm (Stability) LVDS 55% 3.3V 6-Pin SMD Bulk

Download ASGTX-D-10.000MHZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

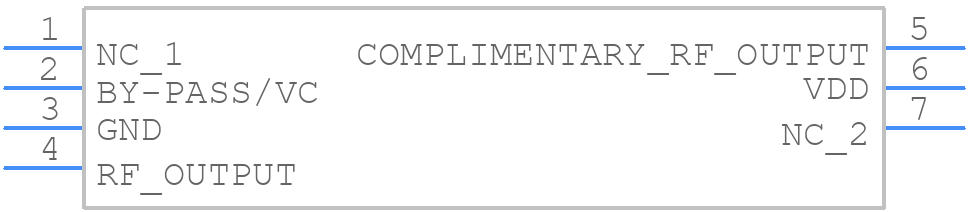

Symbol
ASGTX-D-10.000MHZ-1 - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASGTX-D-10.000MHZ-1 - ABRACON PCB footprint - Other - Other - ASGTX
click to zoom
3D Models
ASGTX-D-10.000MHZ-1 - ABRACON - 3D model - Other - ASGTX
click to zoom

ASGTX-D-10.000MHZ-1 Details

  • Manufacturer Part Number:

    ASGTX-D-10.000MHZ-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    New Zealand

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Additional Feature:

    COMPLEMENTARY OUTPUT

  • Control Voltage-Max:

    2.5 V

  • Fall Time-Max:

    0.45 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    10 ppm

  • Frequency Stability:

    1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Equivalence Code:

    DILCC6,.28,110

  • Physical Dimension:

    9.0mm x 7.0mm x 2.24mm

  • Rise Time-Max:

    0.35 ns

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASGTX-D-10.000MHZ-1 Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the ASGTX-D-10.000MHZ-1 is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • The ASGTX-D-10.000MHZ-1 is rated for operation up to 85°C, but it's recommended to derate the frequency tolerance and stability specifications for temperatures above 70°C. Consult the manufacturer for specific guidance.
  • Use a 0.01 μF to 0.1 μF decoupling capacitor between the VCC pin and GND, placed as close to the oscillator as possible, to filter out noise and ensure stable operation.
  • The typical start-up time for the ASGTX-D-10.000MHZ-1 is around 2-5 ms, but this can vary depending on the specific application and power supply conditions.
  • Yes, but ensure that the oscillator's power supply is properly isolated from other power domains using filtering or isolation components to prevent noise and interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASGTX-D-10.000MHZ-1 Overview

Use the download button to access the ASGTX-D-10.000MHZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX, or try a keyword search, such as TCVCXO
