Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias near the oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground layer to reduce noise and EMI.
The ASGTX-D-100.000MHZ-2 oscillator is designed to handle power-up and power-down sequences without any issues. However, it's recommended to follow a slow power-up and power-down sequence to ensure stable operation. A minimum of 1ms power-up and power-down ramp time is recommended.
The ASGTX-D-100.000MHZ-2 oscillator is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability specifications for operation above +70°C.
Yes, the ASGTX-D-100.000MHZ-2 oscillator is designed to withstand high-vibration environments. It's tested to meet the vibration requirements of MIL-STD-202, Method 204, Condition D. However, it's recommended to consult with Abracon's application engineers for specific vibration requirements and custom testing.
Abracon recommends storing the ASGTX-D-100.000MHZ-2 oscillator in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is from -40°C to +30°C, and the relative humidity should be below 60%.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASGTX-D-100.000MHZ-2 Overview

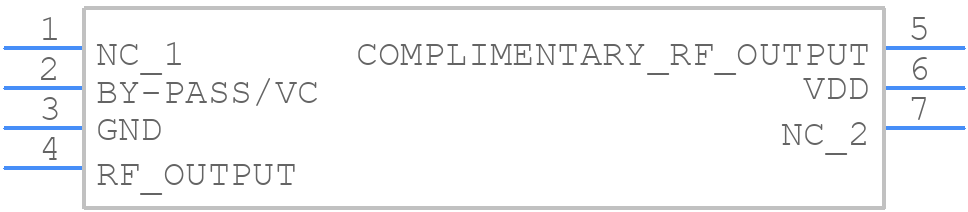

Use the download button to access the ASGTX-D-100.000MHZ-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX,
or try a keyword search, such as TCVCXO
