ASGTX-D-12.288MHZ-1 - ABRACON

Description: XTAL OSC VCTCXO 12.2880MHZ LVDS

Download ASGTX-D-12.288MHZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

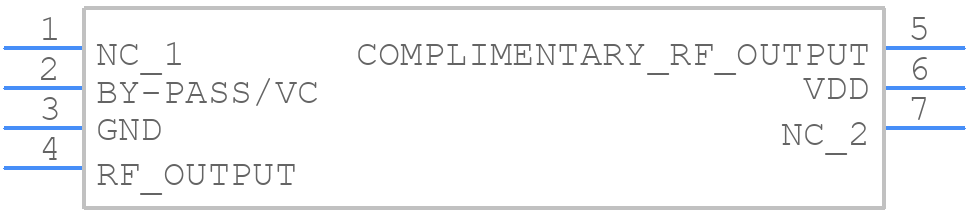

Symbol
ASGTX-D-12.288MHZ-1 - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASGTX-D-12.288MHZ-1 - ABRACON PCB footprint - Other - Other - ASGTX
click to zoom
3D Models
ASGTX-D-12.288MHZ-1 - ABRACON - 3D model - Other - ASGTX
click to zoom

ASGTX-D-12.288MHZ-1 Details

  • Manufacturer Part Number:

    ASGTX-D-12.288MHZ-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    New Zealand

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Additional Feature:

    COMPLEMENTARY OUTPUT; BULK

  • Aging:

    1 PPM/FIRST YEAR

  • Control Voltage-Max:

    3.3 V

  • Fall Time-Max:

    0.45 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    10 ppm

  • Frequency Stability:

    1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    12.288 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    LVDS

  • Physical Dimension:

    9.0mm x 7.0mm x 2.24mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASGTX-D-12.288MHZ-1 Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical layout with the crystal oscillator placed close to the microcontroller's clock input, and using a ground plane to minimize noise and radiation.
  • Make sure the power supply is stable and the voltage is within the recommended range of 1.8V to 3.3V. Also, ensure the load capacitance is within the recommended range of 12pF to 22pF.
  • The typical start-up time for the ASGTX-D-12.288MHZ-1 is around 2-5 milliseconds.
  • The ASGTX-D-12.288MHZ-1 is rated for operation up to 85°C, but it's recommended to derate the frequency tolerance and stability at higher temperatures.
  • No, the ASGTX-D-12.288MHZ-1 is a fixed-frequency crystal oscillator and cannot be used at a different frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASGTX-D-12.288MHZ-1 Overview

Use the download button to access the ASGTX-D-12.288MHZ-1 schematic symbol, PCB footprint, and 3D model.
