ASGTX-D-125.000MHZ-1 - ABRACON

Description: Configurable High Performance SMD TCXO/VCTCXO

Download ASGTX-D-125.000MHZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

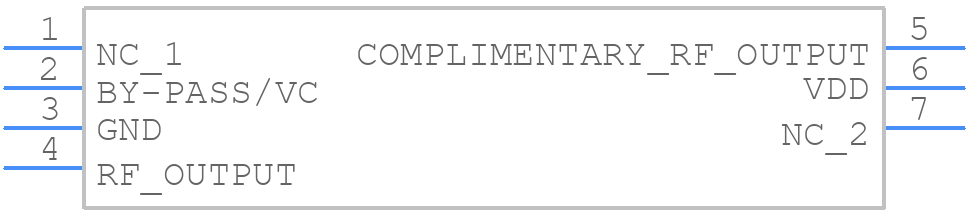

Symbol
ASGTX-D-125.000MHZ-1 - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASGTX-D-125.000MHZ-1 - ABRACON PCB footprint - Other - Other - ASGTX
click to zoom
3D Models
ASGTX-D-125.000MHZ-1 - ABRACON - 3D model - Other - ASGTX
click to zoom

ASGTX-D-125.000MHZ-1 Details

  • Manufacturer Part Number:

    ASGTX-D-125.000MHZ-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    New Zealand

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    COMPLEMENTARY OUTPUT; BULK

  • Aging:

    1 PPM/FIRST YEAR

  • Control Voltage-Max:

    3.3 V

  • Fall Time-Max:

    0.45 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    10 ppm

  • Frequency Stability:

    1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    LVDS

  • Physical Dimension:

    9.0mm x 7.0mm x 2.24mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASGTX-D-125.000MHZ-1 Frequently Asked Questions (FAQs)

  • The recommended termination impedance is 15pF to 30pF to ensure optimal signal integrity and minimize signal reflections.
  • Yes, the ASGTX-D-125.000MHZ-1 is rated for operation from -40°C to +85°C, making it suitable for use in harsh environments with high temperatures.
  • The typical power consumption of the ASGTX-D-125.000MHZ-1 is around 20mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the ASGTX-D-125.000MHZ-1 is compatible with lead-free soldering processes and is RoHS compliant.
  • The typical jitter performance of the ASGTX-D-125.000MHZ-1 is around 50ps, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASGTX-D-125.000MHZ-1 Overview

Use the download button to access the ASGTX-D-125.000MHZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX, or try a keyword search, such as TCVCXO
