ASGTX5DAF1-250.0000 - ABRACON

Description: Oscillator TCXO 250MHz ±1ppm (Tol) ±12.5ppm (Stability) LVDS 55% 3.3V 8-Pin SMD Bulk

Download ASGTX5DAF1-250.0000 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASGTX5DAF1-250.0000 model

Email notifications will be applied after download.

Send part feedback

Symbol

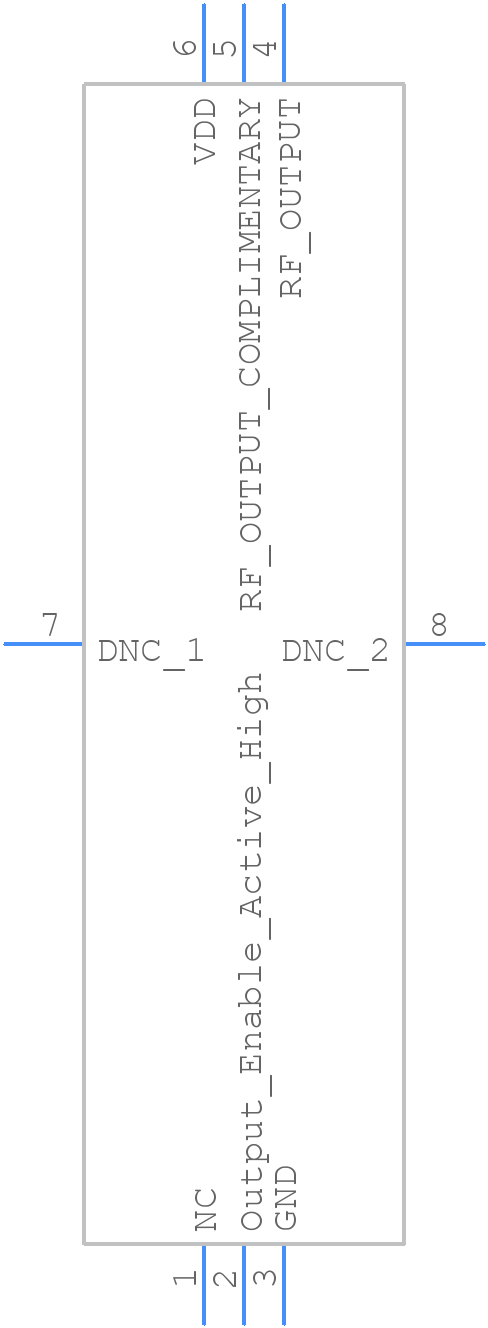

ASGTX5DAF1-250.0000 - ABRACON - PCB symbol

PCB Footprints

ASGTX5DAF1-250.0000 - ABRACON PCB footprint - Other - Other - ASGTX5

3D Models

ASGTX5DAF1-250.0000 - ABRACON - 3D model - Other - ASGTX5

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASGTX5DAF1-250.0000
Part Number ASGTX5DAF1-250.0000
Manufacturer ABRACON
Pin Count 8
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ASGTX5
Released Date Apr 30, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASGTX5DAF1-250.0000 Details

Manufacturer Part Number:
ASGTX5DAF1-250.0000
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
52 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Fall Time-Max:
0.4 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
3%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Nom:
250 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC8,.12X.2,50/36
Physical Dimension:
5.0mm x 3.2mm x 1.4mm
Rise Time-Max:
0.4 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

ASGTX5DAF1-250.0000 Frequently Asked Questions (FAQs)

The operating temperature range of the ASGTX5DAF1-250.0000 is -40°C to +85°C.
Yes, the ASGTX5DAF1-250.0000 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The recommended storage temperature for the ASGTX5DAF1-250.0000 is -40°C to +125°C.
Yes, the ASGTX5DAF1-250.0000 is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and other applications where vibration is a concern.
The typical lead time for the ASGTX5DAF1-250.0000 is 8-12 weeks, but this may vary depending on the quantity and availability.
