ASI4UE-E-G1-ST - Renesas Electronics

Description: The ASI4U is a next-generation CMOS integrated circuit for AS-i networks. This low-level field bus AS i (Actuator Sensor Interface) was designed for easy, safe, and cost-effective interconnection of sensors, actuators, and switches. It transports both power and data over the same two-wire unshielded cable.The ASI4U is used as part of a master or slave node and functions as an interface to the physical bus. It provides the power supply, physical data transfer, and communication protocol handling. The ASI4U i

Download ASI4UE-E-G1-ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

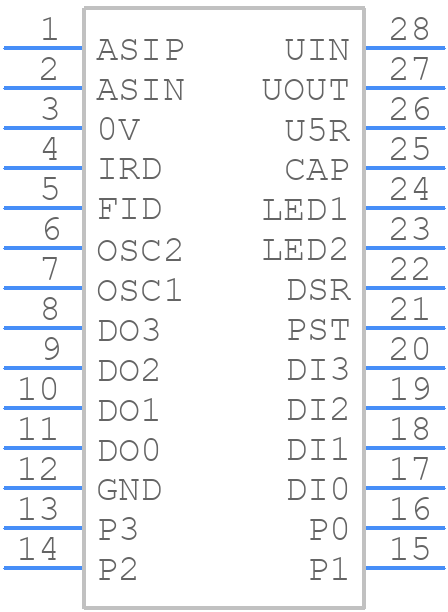

ASI4UE-E-G1-ST - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ASI4UE-E-G1-ST - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - sop-28
click to zoom
3D Models
ASI4UE-E-G1-ST - Renesas Electronics - 3D model - Small Outline Packages - sop-28
click to zoom

ASI4UE-E-G1-ST Details

  • Manufacturer Part Number:

    ASI4UE-E-G1-ST

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Manufacturer Package Code:

    PSG28

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    33.1 V

  • Supply Voltage-Min:

    16 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ASI4UE-E-G1-ST Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a reliable clock source, ensure proper termination, and maintain a stable power supply. Also, implement error detection and correction mechanisms in your firmware.
  • The maximum cable length depends on the specific application and environment. However, as a general guideline, it's recommended to keep the cable length below 10 meters to minimize signal degradation.
  • The ASI4UE-E-G1-ST is rated for operation up to 85°C. However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation.
  • Use shielding, filtering, and grounding techniques to minimize EMI. Ensure proper PCB layout, and consider using EMI filters or common-mode chokes if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASI4UE-E-G1-ST Overview

Use the download button to access the ASI4UE-E-G1-ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASI4U, or try a keyword search, such as Other Interface ICs
