Description:The ASI4U is a next-generation CMOS integrated circuit for AS-i networks. This low-level field bus AS i (Actuator Sensor Interface) was designed for easy, safe, and cost-effective interconnection of sensors, actuators, and switches. It transports both power and data over the same two-wire unshielded cable.The ASI4U is used as part of a master or slave node and functions as an interface to the physical bus. It provides the power supply, physical data transfer, and communication protocol handling. The ASI4U i
Renesas provides a reference design guide for the ASI4UE-F-G1-SR, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
The ASI4UE-F-G1-SR has built-in error detection and correction mechanisms, such as CRC and ECC. Engineers can use these features to detect and correct errors. Additionally, Renesas provides application notes and software development kits (SDKs) that include examples of fault detection and error handling implementations.
The ASI4UE-F-G1-SR requires a specific power sequencing and voltage ramp-up procedure to ensure proper operation. Renesas recommends following the power-up sequence and voltage ramp-up rates specified in the datasheet and application notes to prevent damage or malfunction.
Renesas provides a range of tools and resources, including software development kits (SDKs), application notes, and technical support, to help engineers optimize the ASI4UE-F-G1-SR's performance for their specific application. Engineers can also consult with Renesas' technical support team for customized guidance.
The ASI4UE-F-G1-SR is designed to meet various EMC and EMI standards, such as IEC 61000-4-x and CISPR 25. Engineers should follow Renesas' guidelines for PCB layout, component selection, and shielding to ensure compliance with these standards and minimize EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASI4UE-F-G1-SR Overview

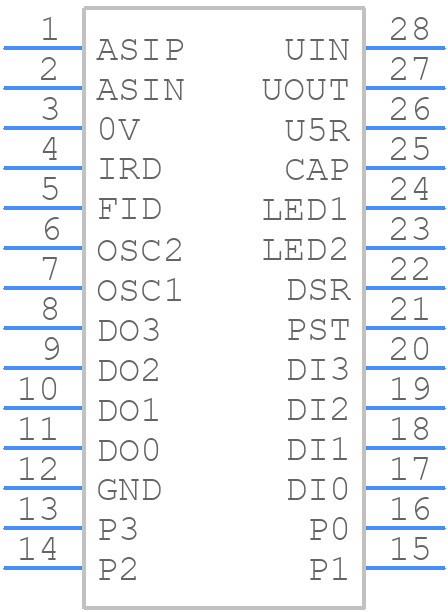

Use the download button to access the ASI4UE-F-G1-SR schematic symbol, PCB footprint, and 3D model.
