Description:The ASI4U is a next-generation CMOS integrated circuit for AS-i networks. This low-level field bus AS i (Actuator Sensor Interface) was designed for easy, safe, and cost-effective interconnection of sensors, actuators, and switches. It transports both power and data over the same two-wire unshielded cable.The ASI4U is used as part of a master or slave node and functions as an interface to the physical bus. It provides the power supply, physical data transfer, and communication protocol handling. The ASI4U i
Renesas provides a reference design guide for the ASI4UE-F-G1-ST, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
The ASI4UE-F-G1-ST has a built-in power-on reset (POR) circuit, but it's recommended to implement an external POR circuit for added reliability. For brown-out detection, you can use an external voltage supervisor IC or implement a software-based brown-out detection mechanism using the MCU's ADC and voltage monitoring capabilities.
To ensure EMI and EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding cans to minimize radiated emissions. It's also essential to perform EMI and EMC testing to ensure compliance with relevant standards.
To optimize power consumption, use the MCU's power-saving modes, such as sleep and standby modes. Additionally, consider using a low-power oscillator, reducing the clock frequency, and optimizing the peripheral usage. Renesas provides power consumption estimation tools and guidelines to help with this process.
The ASI4UE-F-G1-ST has built-in security features, such as a cryptographic engine and secure boot mechanisms. For secure firmware updates, use a secure communication protocol, such as HTTPS or SFTP, and implement digital signatures and encryption. Additionally, consider using secure key storage and access control mechanisms to protect sensitive data.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASI4UE-F-G1-ST Overview

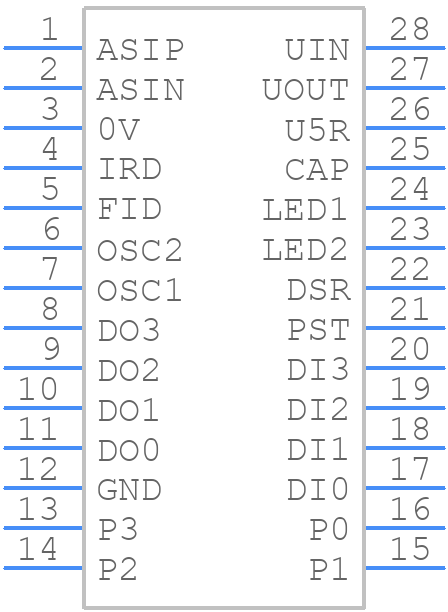

Use the download button to access the ASI4UE-F-G1-ST schematic symbol, PCB footprint, and 3D model.
