Description:The ASI4U is a next-generation CMOS integrated circuit for AS-i networks. This low-level field bus AS i (Actuator Sensor Interface) was designed for easy, safe, and cost-effective interconnection of sensors, actuators, and switches. It transports both power and data over the same two-wire unshielded cable.The ASI4U is used as part of a master or slave node and functions as an interface to the physical bus. It provides the power supply, physical data transfer, and communication protocol handling. The ASI4U i
Renesas provides a reference design guide for the ASI4UE-G1-MR, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and electromagnetic compatibility.
The ASI4UE-G1-MR has a built-in power-on reset (POR) circuit, but it's recommended to implement an external POR circuit to ensure reliable startup. For brown-out detection, you can use an external voltage supervisor IC or implement a software-based detection mechanism using the device's ADC and interrupt capabilities.
To ensure EMI and EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding cans to minimize electromagnetic radiation. It's also essential to perform EMI and EMC testing to ensure compliance with relevant standards.
To optimize power consumption, use the device's low-power modes, such as sleep and standby, and adjust the clock frequency and voltage according to your application's requirements. Additionally, consider using power gating, dynamic voltage and frequency scaling, and optimizing your software to minimize power consumption.
The ASI4UE-G1-MR is rated for operation up to 125°C, but it's essential to consider thermal management and derating when operating in high-temperature environments. Ensure proper heat sinking, use thermal interface materials, and follow Renesas' guidelines for high-temperature operation to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASI4UE-G1-MR Overview

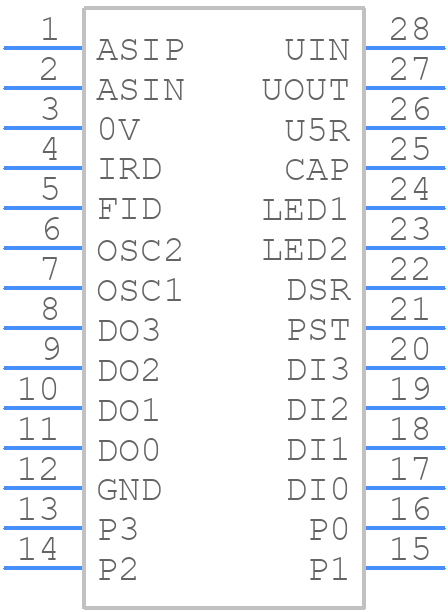

Use the download button to access the ASI4UE-G1-MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASI4U,
or try a keyword search, such as Other Interface ICs
