Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ASM1061
- Part Number ASM1061
- Manufacturer ASMEDIA TECHNOLOGY INC
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 48-Lead QFN
- Released Date Feb 21, 2024
- Last Modified Date Feb 21, 2024 3:31 AM UTC
- Pinout / Pin List Click Here (Member Only)
ASM1061 Details
-
Manufacturer Part Number:
ASM1061
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-48
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Asmedia Technology Inc
-
Additional Feature:
ALSO OPERATES AT 3.3V SUPPLY
-
Bus Compatibility:
ATA
-
Data Transfer Rate-Max:
750 MBps
-
JESD-30 Code:
X-XQCC-N48
-
Number of Terminals:
48
-
Package Body Material:
UNSPECIFIED
ASM1061 Frequently Asked Questions (FAQs)
-
The maximum power consumption of the ASM1061 is 2.5W, but it can be as low as 1.5W in low-power mode.
-
To configure the ASM1061 for SATA III speeds, set the SATA_SIG_SEL pin to '1' and the SATA_SPD_SEL pin to '11'. Additionally, ensure that the SATA clock frequency is set to 150MHz.
-
The ASM1061 supports cable lengths of up to 2 meters for SATA III and 1 meter for SATA II.
-
To implement hot-plug detection, connect the SATA device detect (SDD) pin to a GPIO pin on your system. The SDD pin will go high when a device is connected and low when it is disconnected.
-
The built-in ECC engine in the ASM1061 provides error correction and detection for data transmitted over the SATA interface, ensuring data integrity and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
ASM1061 Overview

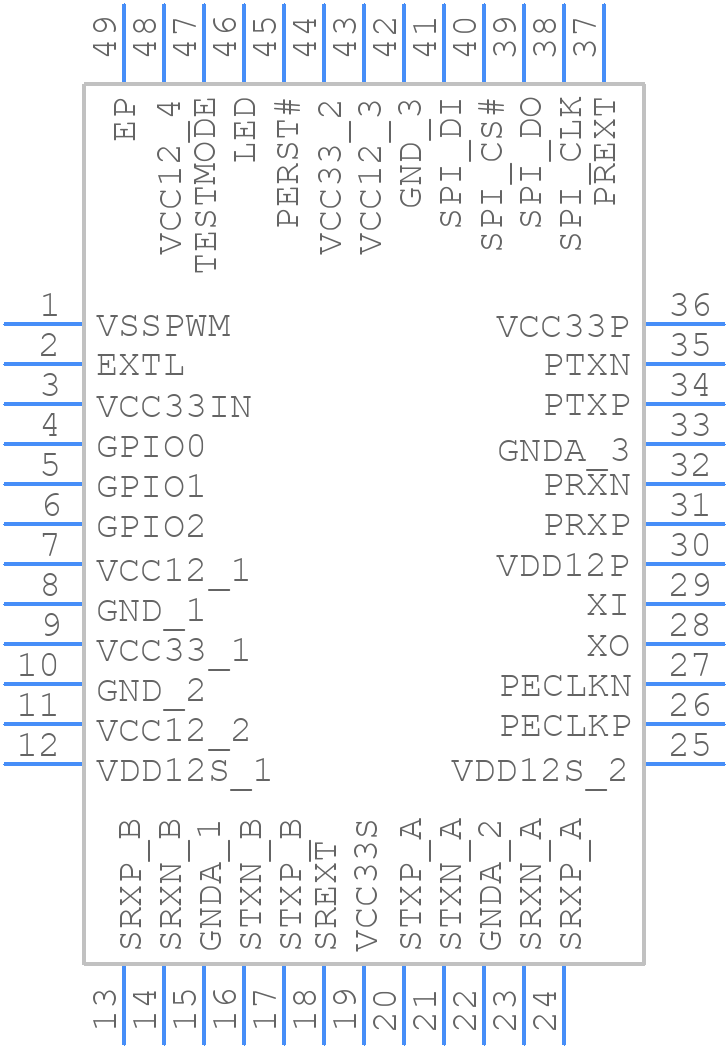

Use the download button to access the ASM1061 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ASM10,
or try a keyword search, such as Bus Controllers
