ASM330LHHTR - STMicroelectronics

Description: STMICROELECTRONICS - ASM330LHHTR - MEMS MOD, 3-AXIS GYROSCOPE/ACCELEROMETER

Download ASM330LHHTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

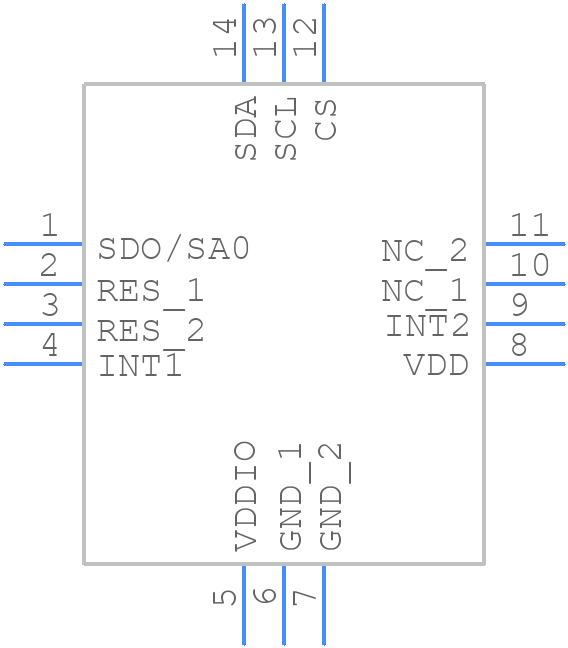

ASM330LHHTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ASM330LHHTR - STMicroelectronics PCB footprint - Other - Other - LGA-14(2.5x3x0.86)
click to zoom
3D Models
ASM330LHHTR - STMicroelectronics - 3D model - Other - LGA-14(2.5x3x0.86)
click to zoom

ASM330LHHTR Details

  • Manufacturer Part Number:

    ASM330LHHTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    12

  • JESD-609 Code:

    e4

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

ASM330LHHTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5032, which includes guidelines for component placement, routing, and thermal management.
  • The ASM330LHHTR does not require calibration, as it is a self-contained inertial measurement unit (IMU) that provides calibrated output data. However, users may need to perform sensor fusion and data processing to achieve optimal performance.
  • The ASM330LHHTR is rated for operation from -40°C to 85°C, but it can be extended to 105°C with reduced accuracy and performance. Consult the datasheet for specific temperature-related specifications.
  • Yes, the ASM330LHHTR is designed to operate in high-vibration environments, with a specified vibration range of 10g RMS from 10 Hz to 2 kHz. However, users should ensure proper mounting and mechanical design to minimize the impact of vibrations on the sensor's performance.
  • The ASM330LHHTR communicates via a standard I2C or SPI interface. Users can interface the sensor with a microcontroller using the provided API and example code, available on the STMicroelectronics website.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASM330LHHTR Overview

Use the download button to access the ASM330LHHTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASM33, or try a keyword search, such as Other Sensors/Transducers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
