ASMB-BTE1-0B332 - Avago Technologies

Description: BROADCOM - ASMB-BTE1-0B332 - LED, RGB, Red, Green, Blue, SMD, 2.4mm, 110 °, Round, R 20mA, G 20mA, B 20mA

Download ASMB-BTE1-0B332 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

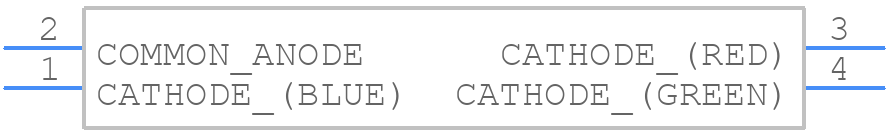

ASMB-BTE1-0B332 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ASMB-BTE1-0B332 - Avago Technologies PCB footprint - Other - Other - ASMB-BTE1-0B332-1
click to zoom
3D Models
ASMB-BTE1-0B332 - Avago Technologies - 3D model - Other - ASMB-BTE1-0B332-1
click to zoom

ASMB-BTE1-0B332 Details

  • Manufacturer Part Number:

    ASMB-BTE1-0B332

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    COMMON ANODE, 3 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e4

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    630.0/1500.0/350.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    1.9 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    629/521/464 nm

  • Reverse Voltage-Max:

    4 V

  • Shape:

    ROUND

  • Size:

    2.4 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    SILVER

  • Viewing Angle:

    110 deg
